Description

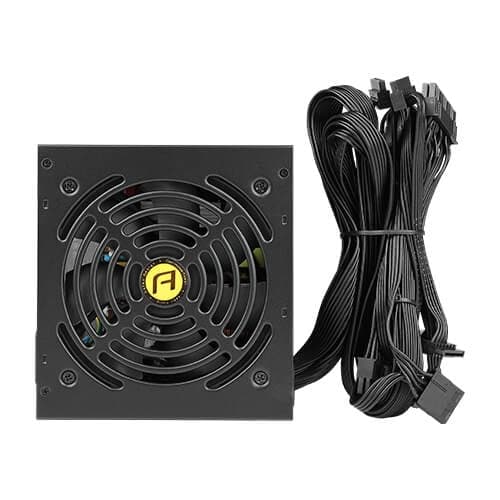

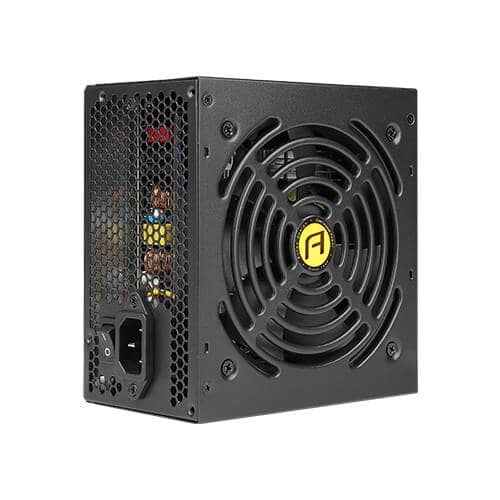

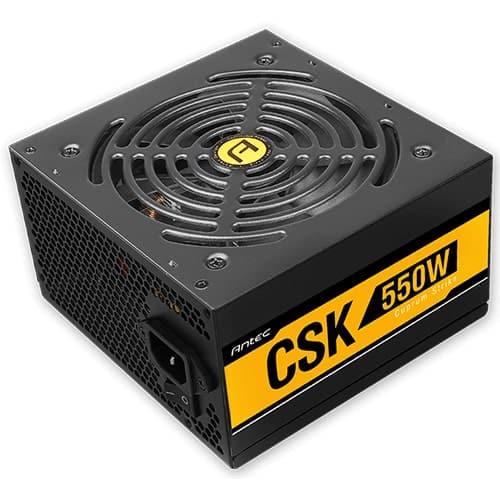

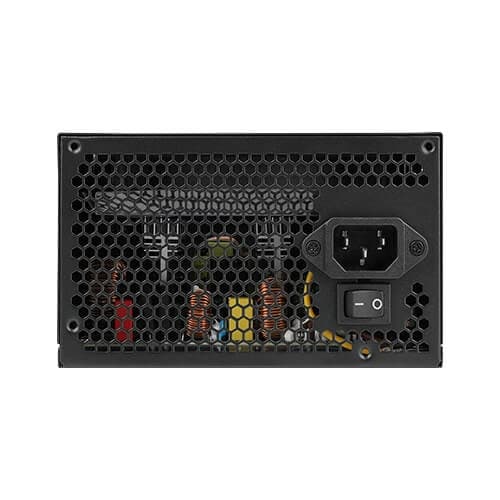

Antec CSK550 80 Plus Bronze Power Supply Unit
Antec’s new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance. Featuring 80 PLUS® BRONZE certification, a quiet 120 mm fan, CSK Bronze includes Antec’s 3 year warranty. The CircuitShield™ suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.
FEATURES :
- Wattage:Â 550 Watt
- SeriesCSKÂ :Â SERIES
- Certification : 80+ BRONZE
- PCIe  : Connector (6+2)2
- SATA Connector:Â 7
- Peripheral : (4-Pin)3
- Warranty : 3 Years
Specifications
| Model | CSK550 Bronze |
| Type | ATX 12V 2.31 |
| Dimension | 140(L) x 150(W) x 86(H) |
| Input Voltage | 100 ~ 240 VAC |
| Input Current | 10A ~ 5A |
| Input Frequency Range | 50Hz ~ 60Hz |
| PFC | Active PFCÂ |
| Power Good Signal | 100 ~ 500ms |
| Efficiency | 88%Â Typically |
| Protection | OCP/OVP/UVP/SCP/OPP/NLO/OTP |
| Output Capacity | 550W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/CCC/FCC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Bronze |
| Connector | 1 x MB 24(20+4) Pin |
| 1 x 8(4+4) Pin EPS 12V | |
| 2 x 8(6+2) Pin PCI-E | |
| 7 x SATAÂ | |
| 2 x Molex | |
| 1 x FDD | |
| Net Weight | 1.53 Kgs |
| Gross Weight | 1.71 Kgs |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifcations are subject to change without notice. |
Additional information
| Brand | |
|---|---|
| Power Supply Efficiency | |
| Power Supply Modular Type | |
| Power Supply Series | |
| Power Supply Wattage |
