- MSI MPG Z390M Gaming Edge AC WiFi Motherboard
Description

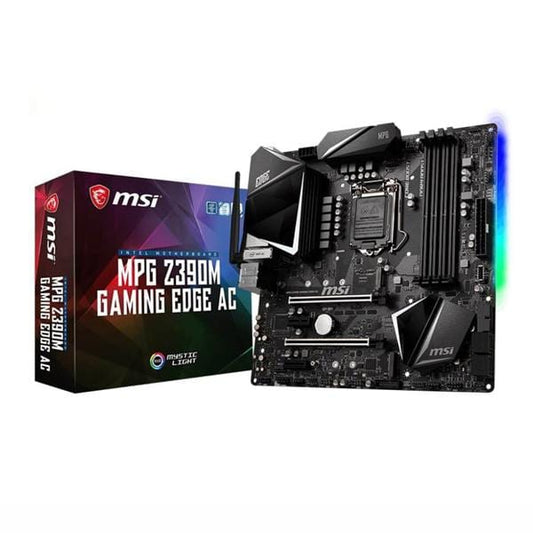

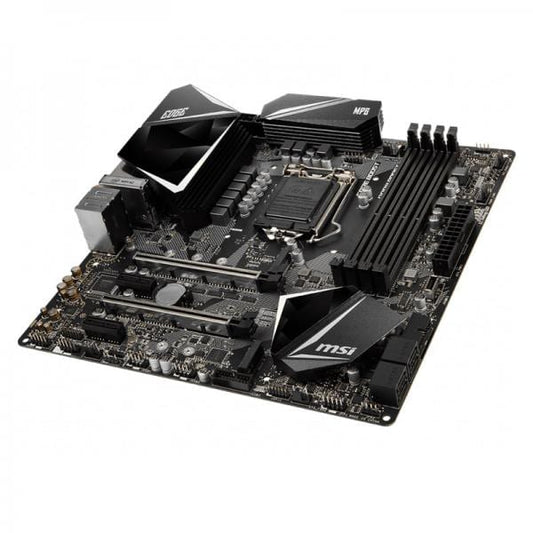

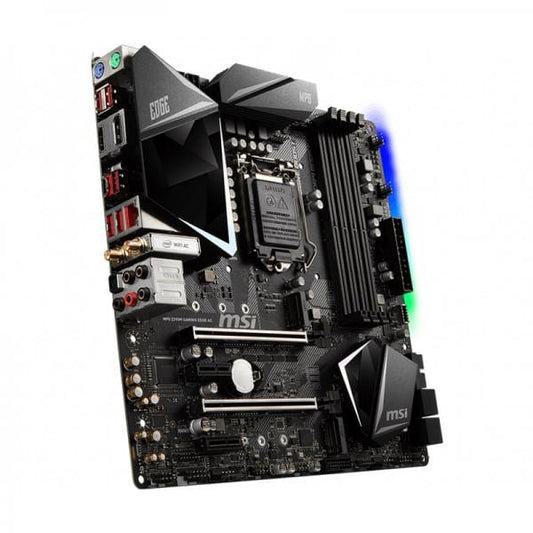

MSI MPG Z390M Gaming Edge AC WiFi Motherboard
Features:
Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Extended Heatsink Design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector and Mystic Light
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4500(OC) MHz
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
- Set Core Power Free: Extended Heatsink Design, Core Boost, 8 4 pin CPU power connector, Game Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
Specifications:
| PROCESSOR | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 128GBDDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
Dual-Channel mode |
| SLOTS |
2 x PCIe 3.0 x16 slotsSupport x16/ x0, x8/ x8 modes
2 x PCIe 3.0 x1 slots |
| ONBOARD GRAPHICS |
1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz *No Display support when using the Processor model with suffix “F” |
| MULTI-GPU |
Supports 2-Way NVIDIA® SLI™ Technology Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
Intel® Z390 Chipset 4 x SATA 6Gb/s ports 2 x M.2 slot (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready1Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID |
Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices |
| USB |
Intel® Z390 Chipset 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A and 1 Type-C ports on the back panel, 1 Type-C internal connector) 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB 3.1 connectors) |
| AUDIO |
Realtek® ALC1220P-VB2 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| WIFI & BLUETOOTH |
Intel® Wireless-AC 9560 Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps Supports Bluetooth® 2.1, 2.1 EDR, 3.0,4.0, 5 |
| INTERNAL CONNECTORS |
24-pin ATX main power connector 8-pin ATX 12V power connector 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x M.2 slots 1 x USB 3.1 Gen2 Type-C port 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors Serial Port connector x 1 Chassis Intrusion connector x 1 Clear CMOS jumper x 1 TPM module connector x 1 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors |

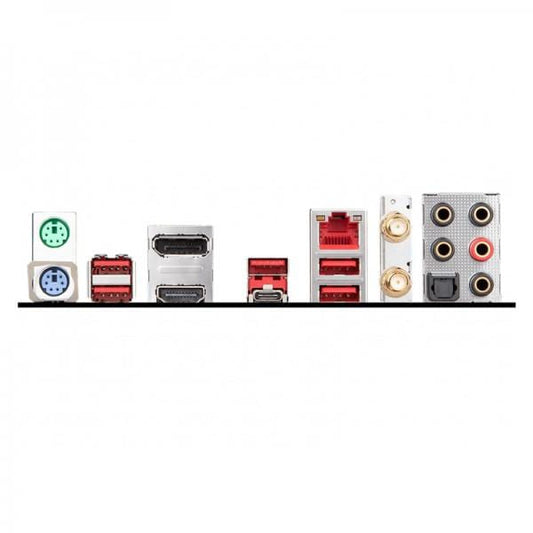

| BACK PANEL PORTS |
Mouse DisplayPort LAN HD Audio Connectors Keyboard USB 3.1 Gen1 HDMI USB 3.1 Gen2 Type-A C USB 3.1 Gen1 Wireless / Bluetooth Optical S/PDIF out |
| DIMENSIONS |
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) Micro-ATX Form Factor |
| MOUNTING | 8 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
