Description

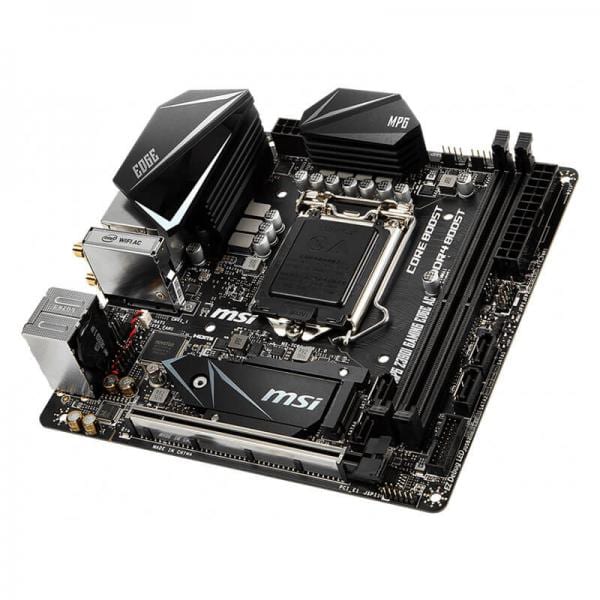

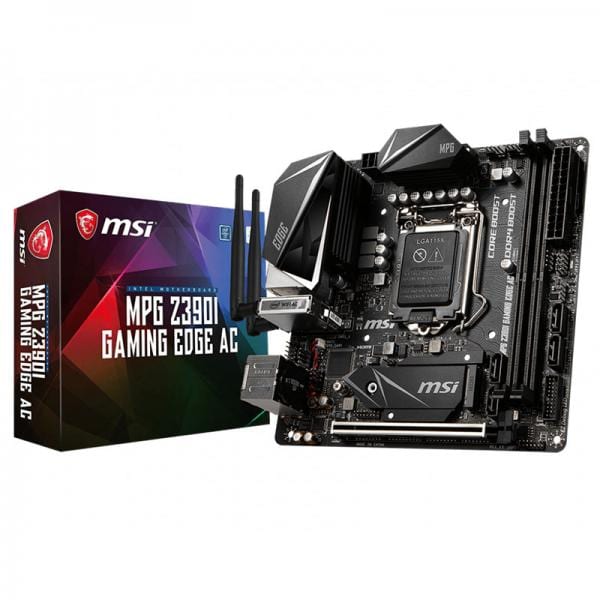

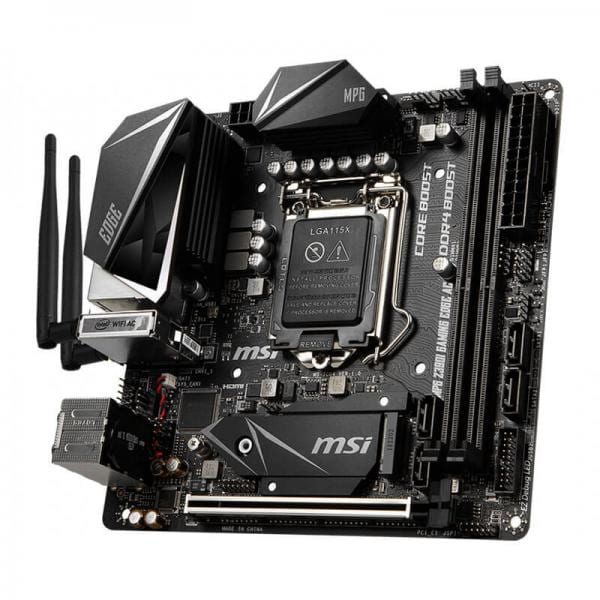

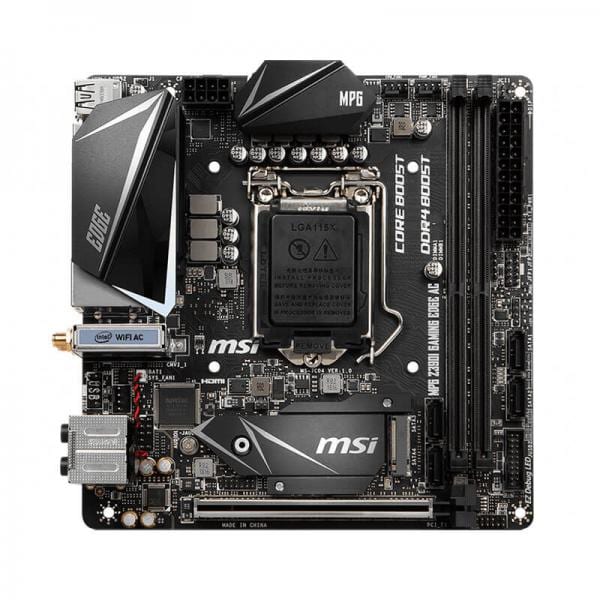

MSI MPG Z390I Gaming Edge AC WiFi Motherboard
Features:
Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Core Boost, DDR4 BoostTwin Turbo M.2, Turbo USB 3.1 Gen2 connector.
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4800(OC) MHz
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
- Set Core Power Free: Core Boost, 8 pin CPU power connector, Game Boost, DDR4 Boost
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
Specifications:
| PROCESSOR | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY |
2 x DDR4 memory slots, support up to 64GBSupports DDR4 4800(OC)/ 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz MHz
Dual-Channel mode |
| SLOTS | 1 x PCIe 3.0 x16 slots |
| ONBOARD GRAPHICS |
1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz *No Display support when using the Processor model with suffix “F” |
| WIFI & BLUETOOTH |
Intel® Wireless-AC 9462 card Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps Supports Bluetooth® 2.1, 2.1 EDR, 3.0, 4.0, 5 |
| STORAGE |
Intel® Z390 Chipset 4 x SATA 6Gb/s ports1 2 x M.2 slot (Key M)1M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2260/ 2280 storage devices Intel® Optane™ Memory Ready2The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID |
Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices |
| USB |
Intel® Z390 Chipset 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.1 connector) 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
| AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| INTERNAL CONNECTORS |
24-pin ATX main power connector 8-pin ATX 12V power connector SATA 6Gb/s connectors 2 x M.2 slots 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) CPU fan 4-pin connector x 1 Water Pump 4-pin connector x 1 System fan 4-pin connector x 1 Front panel audio connector x 1 2 x System panel connectors Chassis Intrusion connector x 1 4-pin RGB LED connector x 1 Clear CMOS jumper x 1 TPM module connector x 1 |

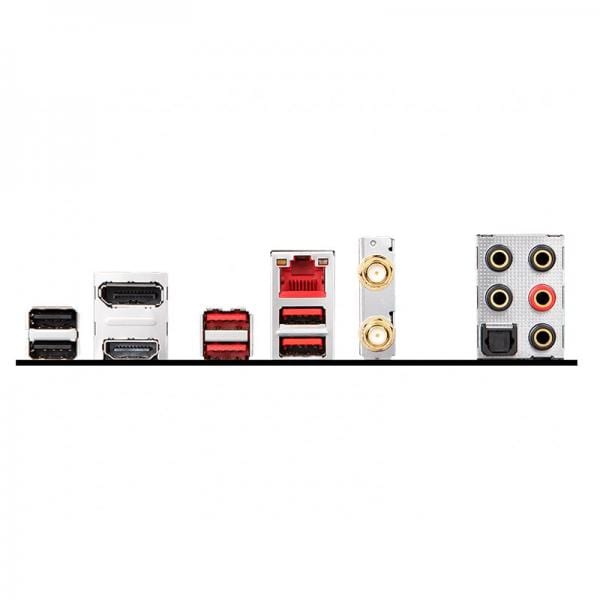

| BACK PANEL PORTS |
DisplayPort LAN HD Audio Connectors USB 2.0 HDMI USB 3.1 Gen1 USB 3.1 Gen2 Wireless / Bluetooth Optical S/PDIF out |
| DIMENSIONS |
6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) Mini-ITX Form Factor |
| MOUNTING | 4 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
