Description
Features of LIAN LI Lancool 217 EATX Mid Tower Cabinet ( White )
The Lian Li Lancool 217 is a mid-tower case that combines innovative cooling design with real wood accents. It comes pre-installed with five fans, delivering optimized airflow right out of the box. A flexible PSU mounting design makes cable management easier. Available in Black with dark wood accents or White with light wood, it blends natural beauty with high-performance capability.
WHERE WOOD MEETS AIRFLOW
The LANCOOL 217 is thoughtfully engineered to blend natural wooden aesthetics with high-performance airflow. It features a front panel that pairs finely perforated mesh with a wooden frame to maintain an organic look while allowing for unrestricted airflow.
The black version is accented with rich walnut wood, delivering a bold and contemporary feel. The white version incorporates light birch wood, offering a sleek, minimalist aesthetic ideal for modern tech setups.
READY-TO-GO COOLING WITH
5 PRE-INSTALLED FANS

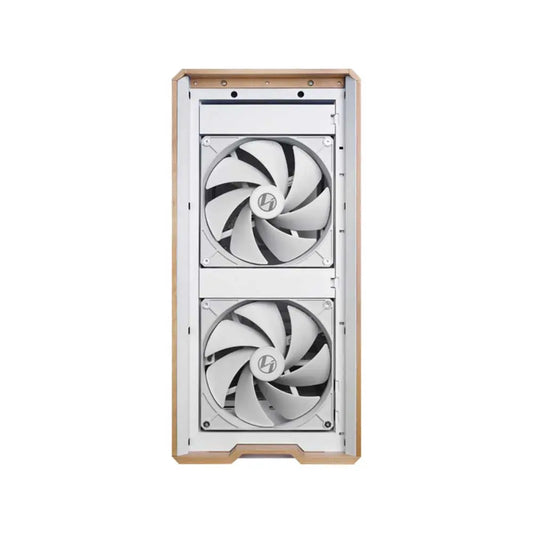

The LANCOOL 217 chassis comes equipped with high-performance fans at the front, rear, and bottom, providing powerful airflow to keep internal components running smoothly and reliably.
The front fans utilize FDB bearing for quieter operation and extended lifespan. Designed for performance, they deliver powerful airflow and can be repositioned to better target the CPU or GPU.
Above the PSU shroud, the bottom fans are specifically positioned to direct cool air toward the GPU, helping to effectively manage its temperature.
At the rear, a 140mm fan effectively removes warm air, helping to maintain balanced airflow throughout the system.
FLEXIBLE INSTALLATION, TOOL-LESS DESIGN
The LANCOOL 217 uses a tool-less fan mounting system with rubber pads on the front and bottom fans, allowing users to easily shift between CPU-focused and GPU-focused cooling modes.
The PCIe slot bracket can be turned 90 degrees to support vertical GPU mounting. In this setup, the bottom fan can be moved under the PSU shroud for a hidden look, giving users more flexibility when building their system.
FLEXIBLE AND EASY INSTALLATION
The LANCOOL 217 comes with screws and washers for installing 120mm fans. Users can take out the screws on the two bottom fans to swap them for different ones. The PSU shroud cover can also be removed, making room for up to three 120mm fans.
DUAL PSU MOUNTING, FLEXIBLE BUILDS
The LANCOOL 217 supports two PSU mounting ways, giving the users more options based on the PSU size, cable routing, and overall build layout. This flexible design makes it easier to set up the system, enhancing convenience and compatibility.
DRIVE SUPPORT
Behind motherboard tray: 2 x 2.5″ SSDs or 1 x 2.5″ SSD
(when using a rear-mounted Micro-ATX motherboard)
HDD cage: 2 x 3.5″ HDD + 2 x 2.5″ SSD+(2 x 3.5″ HDD or 2 x 2.5″ SSD)
PSU shroud cover: 1 x 2.5″ SSD
LARGE GPU, EXCEPTIONAL COMPATIBILITY
The LANCOOL 217 supports GPU up to 380mm in length and features an adjustable anti-sag bracket, ensuring a perfect and secure fit for GPU.
COMPREHENSIVE FAN/RADIATOR SUPPORT
The LANCOOL 217 offers extensive compatibility, supporting both 120mm and 140mm fans.
BRACKET FOR FAST AND EASY INSTALLATION
The top radiator bracket can be fully removed from the chassis, allowing users to install hardware more conveniently. When removing the bracket, the left-side frame bar is removed along with it, creating more available space for installation.
USER-FRIENDLY DESIGN
The LANCOOL 217 features two power buttons suitable for different usage. The top power button is easy to reach when the case is on the floor, and the front button works best if the case is on the desk.
Both the front and bottom include removable magnetic dust filters, effectively preventing dust buildup and extending hardware lifespan.
All fans come with rubber anti-vibration mounts combined with low-noise optimized design, keeping operation noise levels as low as 33.2 dBA for a quiet and comfortable environment.
- Mid-tower chassis designed for advanced workstations and high-performance setups
- Compatible with back-connect motherboards for ultra-clean cable routing
- Supports up to E-ATX / EEB motherboards and dual PSU mounting orientations
- Comes pre-installed with 5 high-performance fans for optimal out-of-box airflow
- Tool-less front fan mounting system for effortless installation and maintenance
- Certified with PPLP for enhanced professional use compliance
Specifications of LIAN LI Lancool 217 EATX Mid Tower Cabinet ( White )
| Model Name | LAN217W |
| Color | White |
| Dimension | (D)482mm x (W)238mm x (H)503mm |
| Material | Steel / 4.0mm Tempered Glass / Wood |
| Motherboard Support | SSI-EEB(Width Max 330mm) / E-ATX（Width Max 280mm） ATX / Micro-ATX/Mini-ITX |
| Back Connect Motherboard Support | ATX / Micro-ATX |
| PSU Support Length | Standard Mode：ATX（Under 220mm） Rotated Mode：ATX（Under 180mm） |
| Fan Support | Front: 170mm x 2 (Included) / 140mm x 3 / 120mm x 3 Top: 3 x 120mm / 2 x 140mm Above PSU Shroud: 3 x 120mm (2 Included) Under the PSU shroud: 2 x 120mm Rear: 1x 140mm(Included) / 1x 120mm |
| Radiator Support | Top: 360 / 280 / 240mm |
| Drive Support | Back Connect Motherboard: 2 x 2.5″ SSD / 1 x 2.5″ SSD(behind MB) 2 x Drive Cage: 1 x 3.5″HDD+ 1 x 2.5″ SSD+(1 x 3.5″ HDD or 1 x 2.5″ SSD) PSU Shroud: 1 x 2.5″ SSD |
| GPU Length Clearance | 380mm (Max.) |
| GPU Height Clearance | 180mm (Max.) |
| Expansion Slot | 7 |
| I/O Ports | 2 x Power Button 2 x USB 3.0 1 x USB Type-C 1 x Audio |
| Dust Filter | 1 x Bottom, 1 x Front |
| Hub | ARGB / FAN Hub：6 x PWM FAN port 4 x 5V ARGB port |
| Warranty | 1 Year (Fan: 3 Years) |
| Note** | **Prices, Specifications & Features are subject to change without notice |
