- GIGABYTE Radeon RX 7600 XT Gaming OC 16GB AMD Graphic Card
Description
Features of GIGABYTE Radeon RX 7600 XT Gaming OC 16GB AMD Graphic Card
- Powered by Radeon RX 7800 XT
- Integrated with 16GB GDDR6 256-bit memory interface

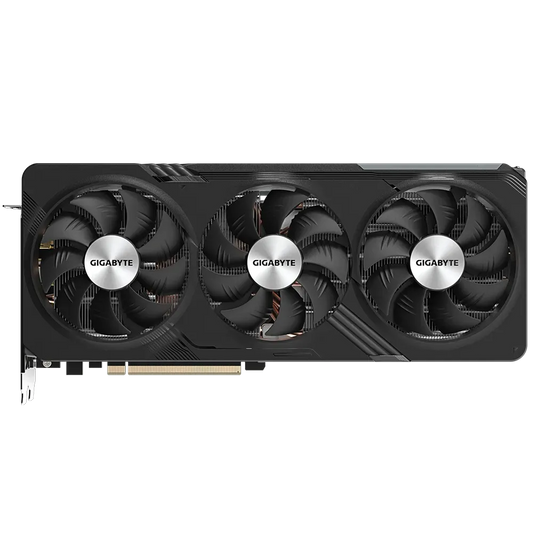

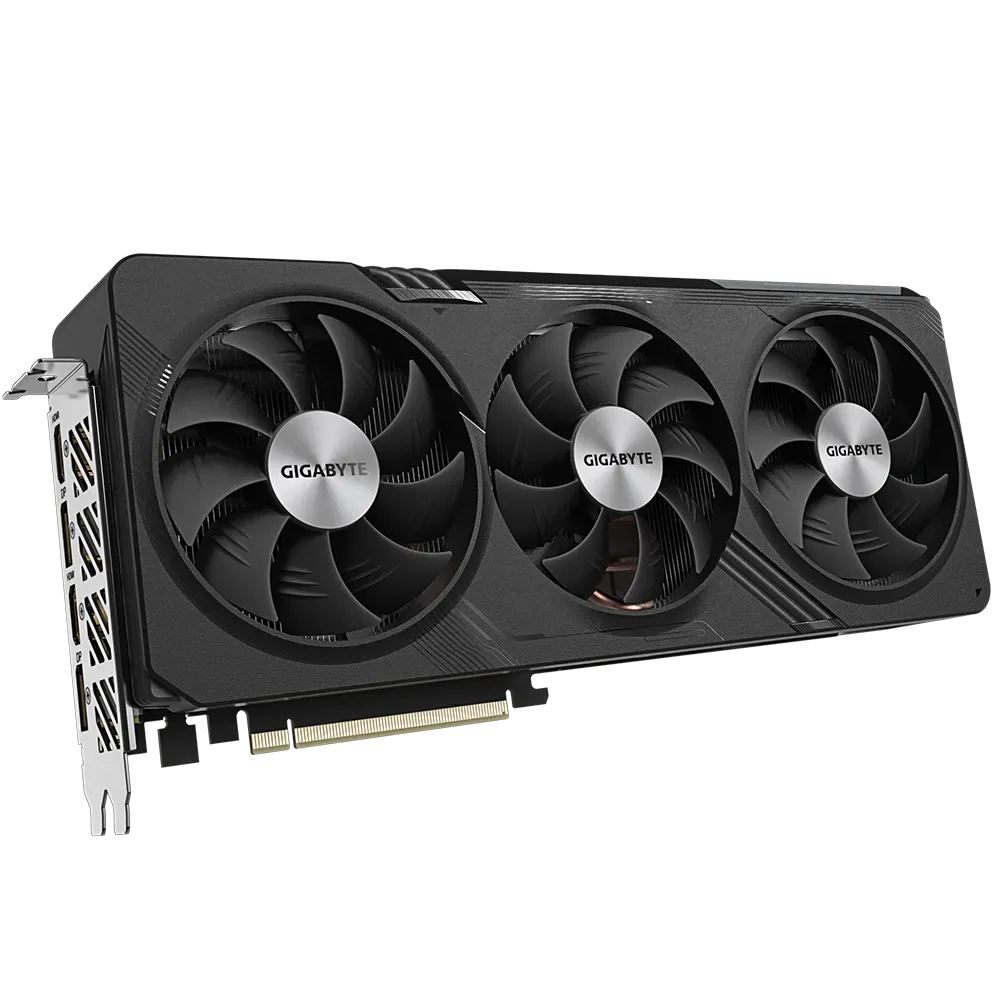

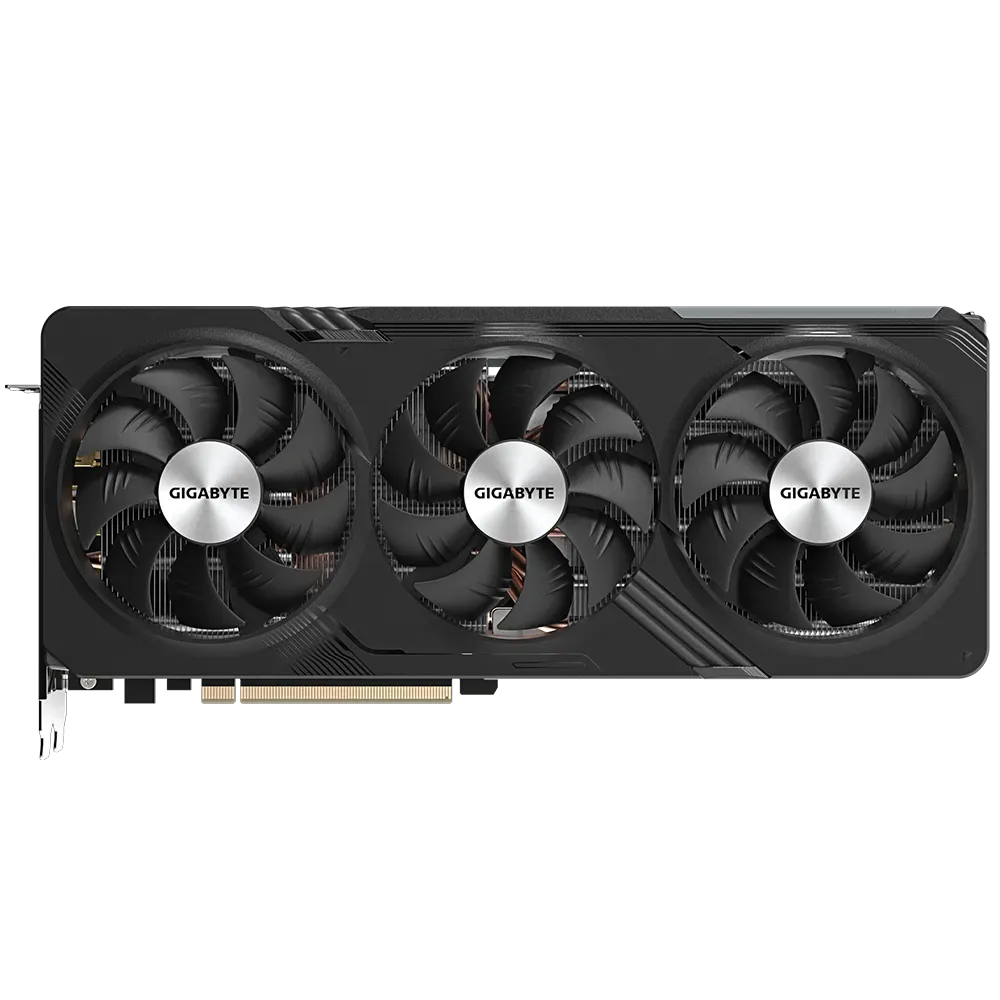

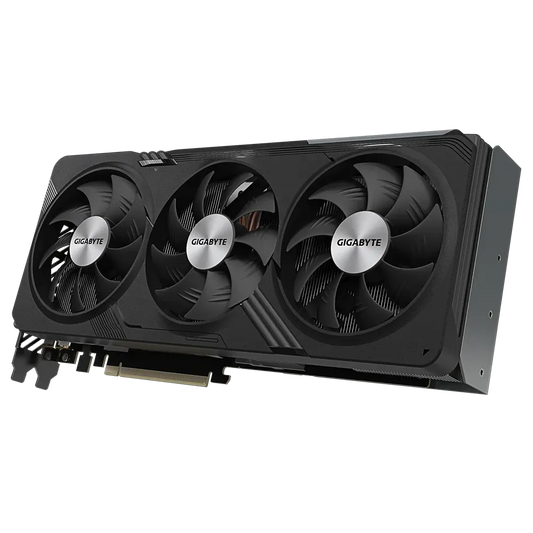

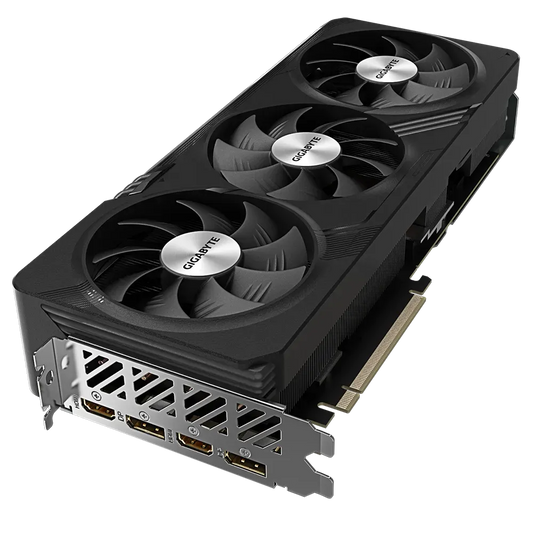

- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS

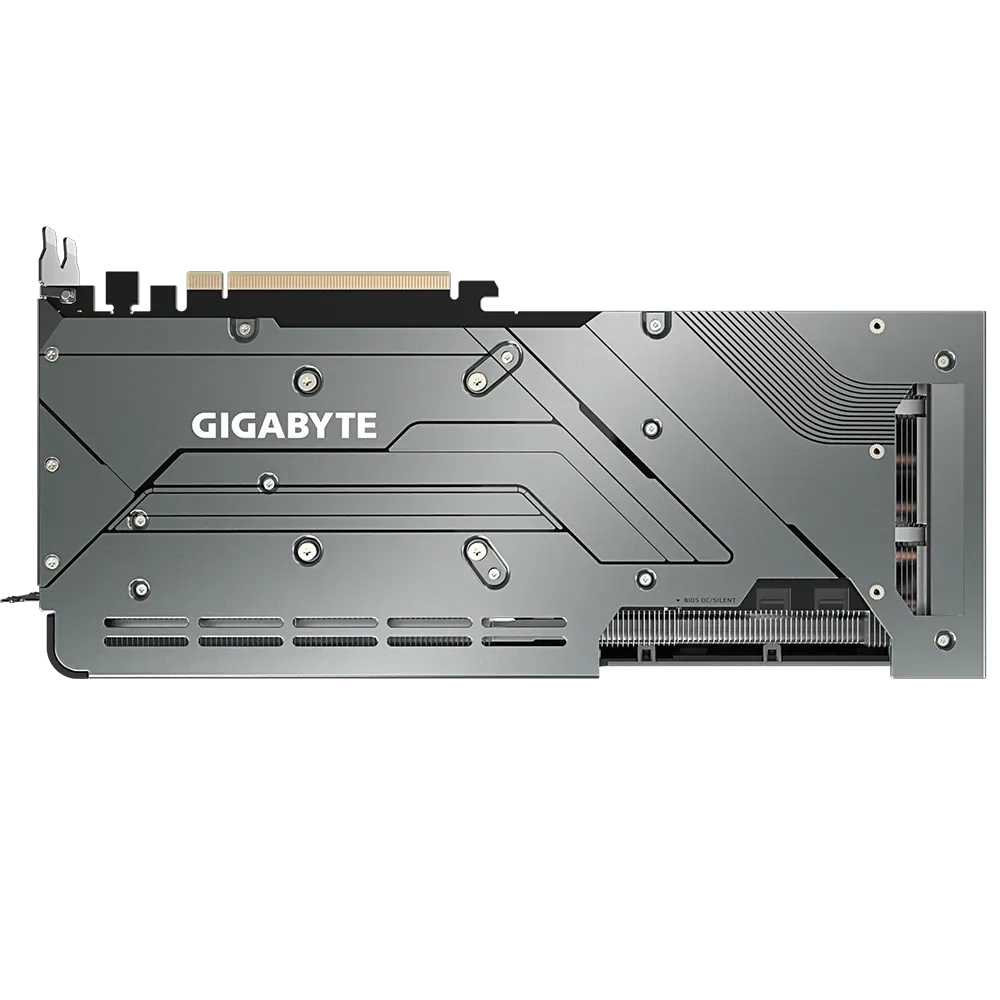

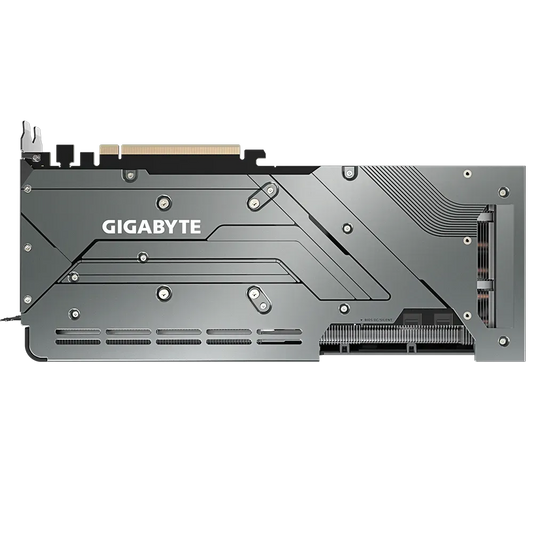

- Protection metal back plate
CORE CLOCK
- Boost Clock : up to 2565 MHz (Reference card: 2430 MHz)
- Game Clock : up to 2254 MHz (Reference card: 2124 MHz)
BUILT STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
RDNA 3 Architecture
Featuring an advanced chiplet design, new compute units, and second-generation AMD Infinity Cache technology, AMD RDNA 3 architecture delivers up to 54% more performance per watt than the previous-generation AMD RDNA 2 architecture. New compute units share resources between rendering, AI, and raytracing to make the most effective use of each transistor for faster, more efficient performance than the previous generation.
Chiplet Design
Now with a chiplet design, this GPU delivers up to 15% higher frequencies with up to 54% better power efficiency. It includes the 5nm Graphics Compute Die (GCD) with up to 96 compute units that provide the core GPU functionality. It also includes six of the 6nm Memory Cache Die (MCD), each with up to 16MB of second-generation AMD Infinity Cache technology.
Ultra-Fast Chiplet Interconnect
Unleashing the benefits of 2nd Gen AMD Infinity Cache technology, the chiplets leverage AMD Infinity Links and high-performance fanout packaging to deliver up to 5.3 TB/s of bandwidth.
Expanded Memory and Wider Memory Bus
To meet the growing requirements of today’s demanding titles, the GIGABYTE Radeon RX 7600 XT Gaming OC 16GB AMD Graphic Card features 16GB of high-speed GDDR6 VRAM running at 19.5 Gb/s over a 256-bit memory bus.
Dedicated AI Acceleration and 2nd-Generation Raytracing
AI instructions and increased AI throughput deliver up to 2.7 times more performance than the previous AMD RDNA 2 architecture, while 2nd-Gen raytracing technology delivers up to 1.8 times more performance than the previous generation.
AMD Radiance Display Engine
Provides 12 bit-per-channel color for up to 68 billion colors and higher refresh rate displays compared to AMD RDNA 2 architecture and includes support for DisplayPort 2.1 and HDMI 2.1a.
High-Refresh Gaming
DisplayPort 2.1 provides increased display bandwidth compared to DisplayPort 1.4, with the ability to support up to 900 Hz, 480 Hz and 165 Hz refresh rates for 1440p, 4K, and 8K displays, respectively.
Dual Media Engine
Supports simultaneous encode or decode streams up to 8K60 for HEVC and supports AV1 encode, delivering up to 1.8 times higher engine frequency than AMD RDNA 2 architecture.
AMD FidelityFX
AMD FidelityFX is an open-source image-quality toolkit comprising of seven different solutions available for game developers to implement into their games that are optimized for AMD RDNA, RDNA 2, and RDNA 3 architectures.
Specifications of GIGABYTE Radeon RX 7600 XT Gaming OC 16GB AMD Graphic Card
| Graphics Processing | Radeon™ RX 7800 XT |
| Core Clock | Boost Clock* : up to 2565 MHz (Reference card: 2430 MHz) Game Clock* : up to 2254 MHz (Reference card: 2124 MHz) |
| CUDA® Cores | 3840 |
| Memory Clock | 19.5 Gbps |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=302 W=130 H=56 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 700W |
| Power Connectors | 8-Pin*2 |

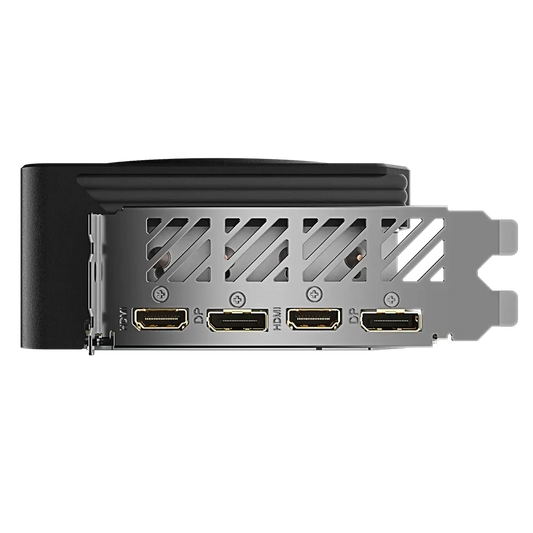

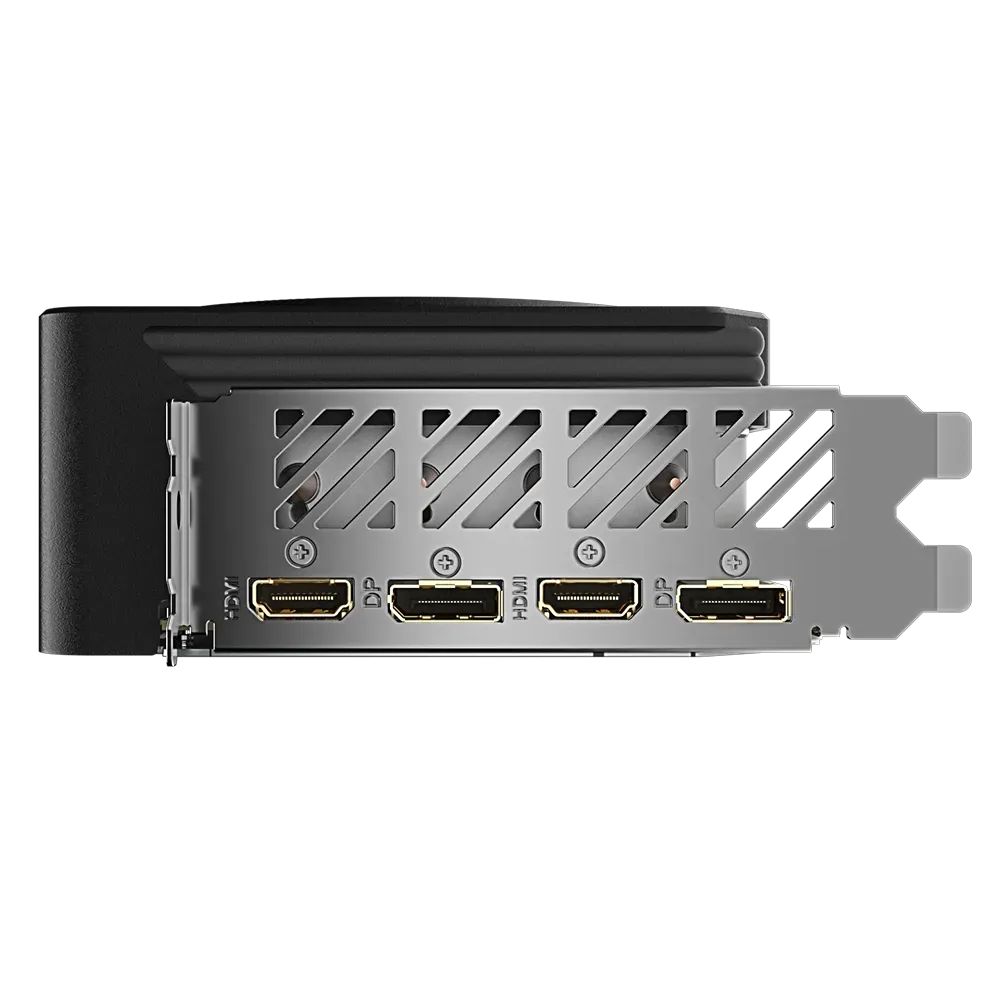

| Output | DisplayPort 2.1 *2 HDMI 2.1 *2 |
| Accessories | Quick guide |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
