- ASUS WS Z390 Pro Motherboard
Description

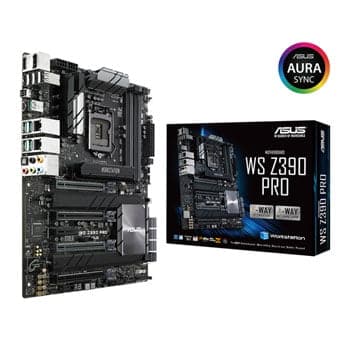

ASUS WS Z390 Pro Motherboard
Features:
- Intel® Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0
- The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
- 4 x DIMM, Max. 128GB, DDR4
- Dual Channel Memory Architecture
-
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Specifications:
| CPU | Intel® Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors |
| Supports Intel® 14 nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0 | |
| * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. | |
| Chipset | Intel® Z390 |
| Memory |
4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/
3400(O.C.)/3333(O.C.)/3300(O.C.)/ 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support |
| Multi-VGA output support : HDMI/DisplayPort ports | |
| - Supports HDMI 2.0 with max. resolution 4096 x 2160 @ 60 / 24 Hz*1 | |
| - Supports DisplayPort with max. resolution 4096 x 2304 @ 24 Hz / 4096 x 2304 @ 60 Hz | |
| - Supports High Dynamic Range(HDR),Wide Color Gamut(Rec.2020),HDCP 2.2 | |
| Maximum shared memory of 1024 MB (for iGPU exclusively) | |
| Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ | |
| Supports up to 2 displays simultaneously | |
| DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays | |
| Multi-GPU Support | Supports NVIDIA® Quad-GPU SLI™ Technology *2 |
| Supports NVIDIA® 4-Way SLI™ Technology *2 | |
| Supports AMD Quad-GPU CrossFireX™ Technology *2 | |
| Supports AMD 4-Way CrossFireX Technology *2 | |
| Expansion Slots | 4 x PCIe 3.0 x16 (single at x16, dual at x16/x16 mode, triple at x16/x8/x8 mode or quad x8/x8/x8/x8 mode) |
| 1 x PCIe x4 (max at x4 mode) | |
| Storage | 2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*3, |
| 2 x U.2 connector, | |
| 6 x SATA 6Gb/s port(s) | |
| Support Raid 0, 1, 5, 10 | |
| Intel® Rapid Storage Technology supports | |
| Intel® Optane™ Memory Ready *4 | |
| LAN | Intel® I210-AT, 1 x Gigabit LAN Controller(s) |
| Intel® I219-LM , 1 x Gigabit LAN | |
| Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance | |
| ASUS Turbo LAN Utility | |
| Audio | Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 |
| - Impedance sense for front and rear headphone outputs | |
| - Supports : Jack-detection, Multi-streaming | |
| 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| Audio Feature : | - DTS Connect |
| - DTS Headphone:X | |
| - Optical S/PDIF out port(s) at back panel | |
| - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | |
| - Unique de-pop circuit: Reduces start-up popping noise to audio outputs | |
| - EMI protection cover to prevent electrical noise to affect the amplifier quality | |
| - Power pre-regulator: Reduces power input noise to ensure consistent performance | |
| Separate layer for left and right track, ensuring both sound deliver equal quality | |
| Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity | |
| USB Ports | 6 x USB 3.1 Gen 2 port(s) (6 at back panel, ) |
| Intel® Z390 Chipset : | 6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board) |
| ASMedia® USB 3.1 Gen 2 controller : | 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM) |
| ASMedia® USB 3.1 Gen 2 controller : | 2 x USB 3.1 Gen 1 port(s) |
| Special Features | OC Design - ASUS PRO Clock Technology |
| - Full BCLK range for extreme overclocking performance | |
| 5-Way Optimization by Dual Intelligent Processors 5 | |
| - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. | |
| ASUS Optimem II： | - Improved DDR4 Stability |
| ASUS Digital Power Design : | - Industry leading Digital 8 + 2 Phase CPU Power Design |
| - Industry leading Digital 2 Phase DRAM Power Design | |
| ASUS Exclusive Features : | |
| - Ai Charger | |
| - Turbo LAN | |
| - Crystal Sound 3 | |
| - EZ XMP ASUS Exclusive Features | |
| ASUS Quiet Thermal Solution : | |
| - Stylish Design Heat-pipe solution | |
| - Stylish Fanless Design with M.2 Heat-sink solution | |
| - ASUS Fan Xpert 4 | |
| Form Factor | ATX Form Factor |
