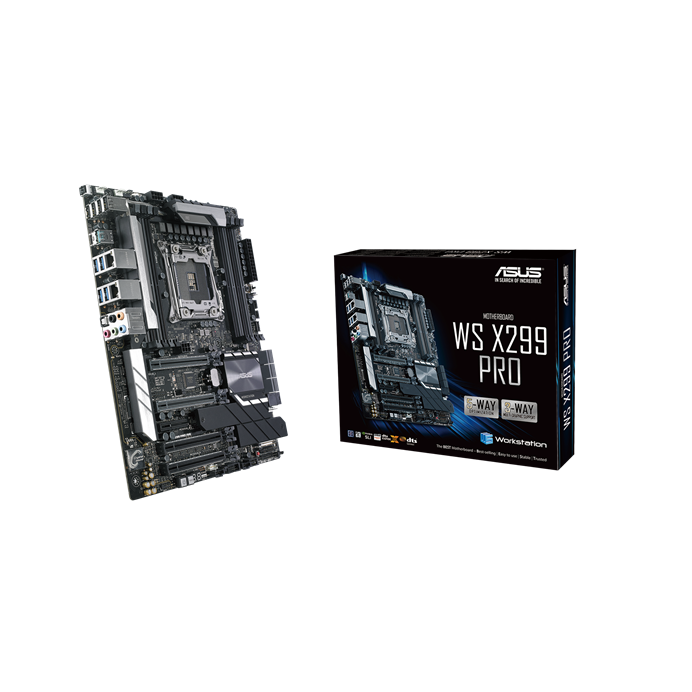

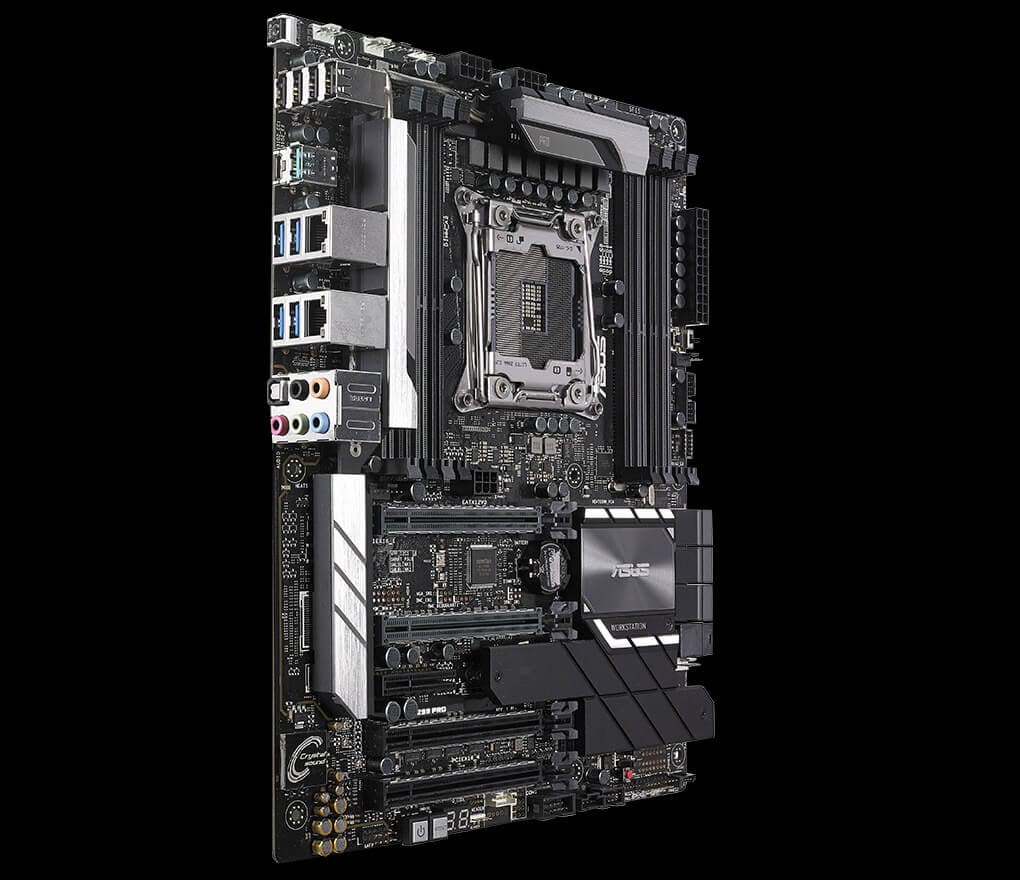

ASUS WS X299 Pro Motherboard
Features:
- Intel® Socket 2066 Core™ X-Series Processors
- The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
- 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Supports Intel® Extreme Memory Profile (XMP)
- Hyper DIMM support is subject to the physical characteristics of individual CPUs.
- Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
- Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin.
Specifications:
| CPU | Intel® Socket 2066 Core™ X-Series Processors |
| Chipset | Intel® X299 |
| Memory |
Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 128GB, DDR4 4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel® Core™ X-series Processors (4-core) 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Multi-GPU Support |
Supports NVIDIA® 3-Way SLI™ Technology * Supports AMD 3-Way CrossFireX™ Technology * |
| Expansion Slots |
44-Lane CPU- 2 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x4 (x4 mode) 28-Lane CPU- 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x4 (x4 mode) 16-Lane CPU- 1 x PCIe 3.0 x16 (x8 mode) 2 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x4 (x4 mode) |
| Storage |
Intel® X299 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) *1 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *2 1 x U.2 connector 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology 15 support Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series (6-core and above) CPU RAID Supports Intel® Smart Response Technology Intel® Optane™ Memory Ready |
| LAN | Intel® I210-AT, 2 x Gigabit LAN Controller(s) |
| Audio |
Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in) Audio Feature : - DTS Connect - DTS Headphone:X - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Separate layer for left and right track, ensuring both sound deliver equal quality Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity |
| USB Ports |
Intel® X299 Chipset: 6 x USB 3.1 Gen 1 port(s) (4 at back panel,, 2 at mid-board) Intel® X299 Chipset: 6 x USB 2.0 port(s) (4 at back panel,, 2 at mid-board) ASMedia® USB 3.1 Gen 2 controller: 2 x USB 3.1 Gen 2 port(s) (2 at back panel,, Type-A + USB Type-CTM) ASMedia® USB 3.1 Gen 2 controller: 1 x USB port(s) |
| Special Features |
OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App TPUFan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS EPU: - EPU ASUS Digital Power Design: - Industry Leading Digital 8 Phase CPU Power Design - Industry Leading Digital 2 Phase DRAM Power Design AURA: - Aura RGB Strip Headers - Aura Addressable Strip Header(s) ASUS Exclusive Features: - AI Suite 3 - Ai Charger+ - Turbo LAN - Crystal Sound 3 ASUS EZ DIY: - ASUS CrashFree BIOS - ASUS EZ Flash - ASUS USB BIOS Flashback - Multi-language BIOS ASUS Q-Design: - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) Asus Control Canter (ACC) IT management software supported |
| Back I/O Ports |
2 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue) Type-A + USB Type-CTM 4 x USB 3.1 Gen 1 4 x USB 2.0 1 x Optical S/PDIF out 1 x USB BIOS Flashback Button(s) 1 x 8-channel Audio I/O |
| Internal I/O Ports |
1 x Aura Addressable Strip Header(s) 1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 1 x TPM header 6 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 2 x CPU Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 6-pin EZ_PLUG Power connector(s) 1 x EZ XMP switch 1 x Front panel connector(s) 1 x AUX panel header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS button(s) 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x Rear fan 1 x COM port header 1 x U.2 Connector (support U.2 NVMe device) 1 x USB 3.1 Gen 2 front panel connector 1 x PANEL2 1 x PUMP Fan connector 1 x PANEL1 Accessories User's manual 1 x Vertical M.2 bracket set I/O Shield 1 x COM port cable(s) 6 x SATA 6Gb/s cable(s) 2 x M.2 screws 1 x Supporting DVD 1 x 3-Way SLI bridge(s) 1 x SLI bridge(s) 1 x Q-Connector 1 x 2-port USB module(s) 1 x Extension Cable for RGB strips (80 cm) |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features,Price and specifications are subject to change without notice. |
