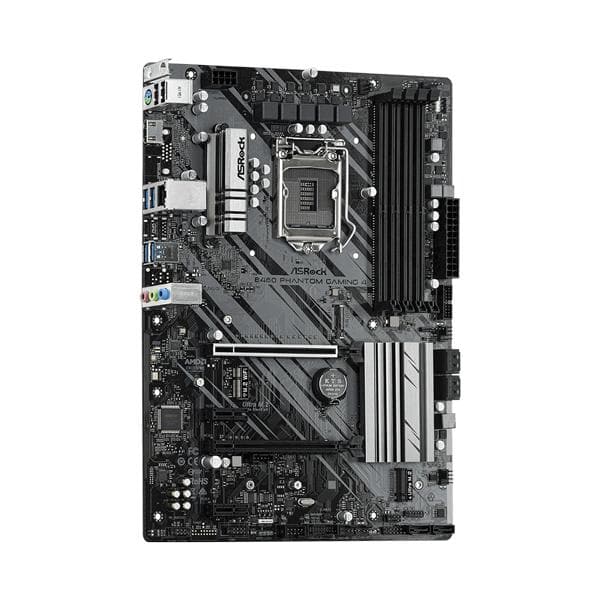

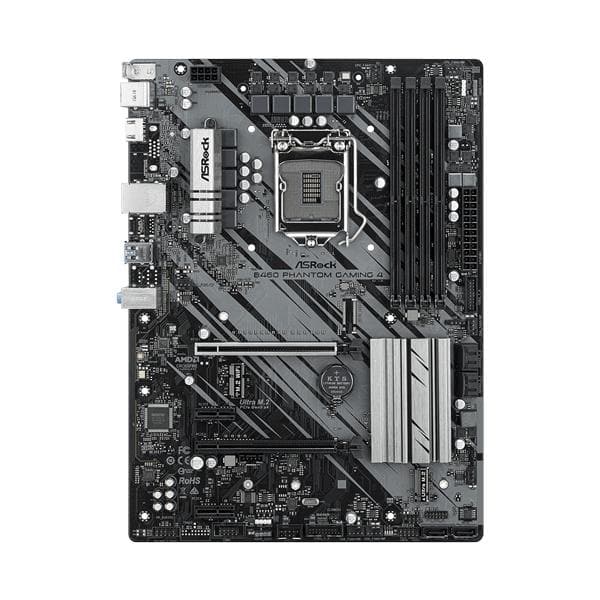

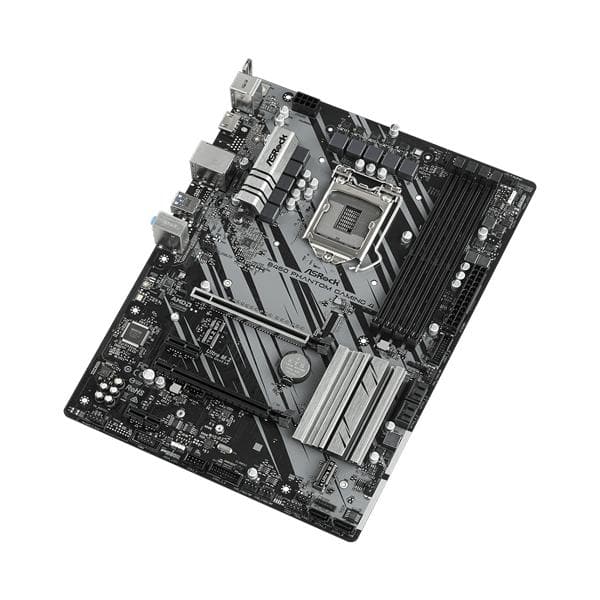

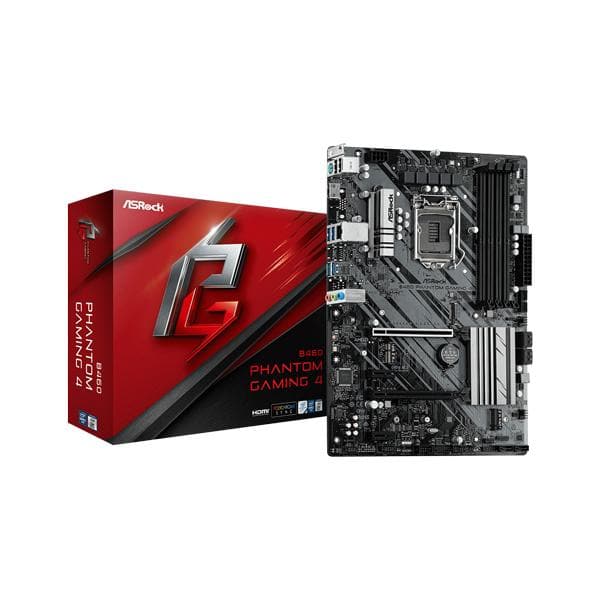

- ASROCK B460 Phantom Gaming 4 DDR4 Intel Motherboard
Description
Features of ASROCK B460 Phantom Gaming 4 DDR4 Intel Motherboard
- This ASROCK B460 Phantom Gaming 4 DDR4 Intel Motherboard Supports 10th Gen Intel® Core™ processors (Socket 1200)
- 9 Power Phase Design
- Supports DDR4 2933MHz
- 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
- AMD CrossFireX™
- Graphics Output Options: HDMI
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- Intel® Gigabit LAN
Specifications of ASROCK B460 Phantom Gaming 4 DDR4 Intel Motherboard
| Gaming Armor |
Memory - 15μ Gold Contact in DIMM Slots Internet - Intel® LAN Audio - Nahimic Audio |
| Unique Feature |
ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU |
- Supports 10th Gen Intel® Core™ Processors (Socket 1200) - Digi Power design - 9 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | - Intel® B460 |
| Memory |
- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots*Please refer to Memory Support List on ASRock's website for more information. Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS |
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
| Graphics |
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1* - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 1.4 Port - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows® OS. |
| Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
| LAN |
- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Slots |
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)* - 2 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module*Supports NVMe SSD as boot disks |
| Storage |
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. **Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Connector |
- 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) - 2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)*Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. |

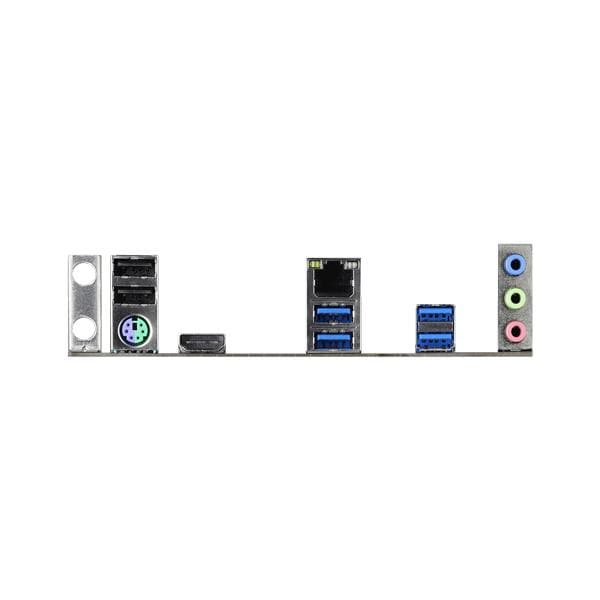

| Rear Panel I/O |
- 1 x Antenna Bracket - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI |
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Polychrome SYNC - ASRock Key Master - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories |
- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
| Hardware Monitor |
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCST |
| Form Factor |
- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm - Solid Capacitor design |
| OS | - Microsoft® Windows® 10 64-bit |
| Certifications |
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Notes | ***Features, Price and Specifications are subject to change without notice. |
