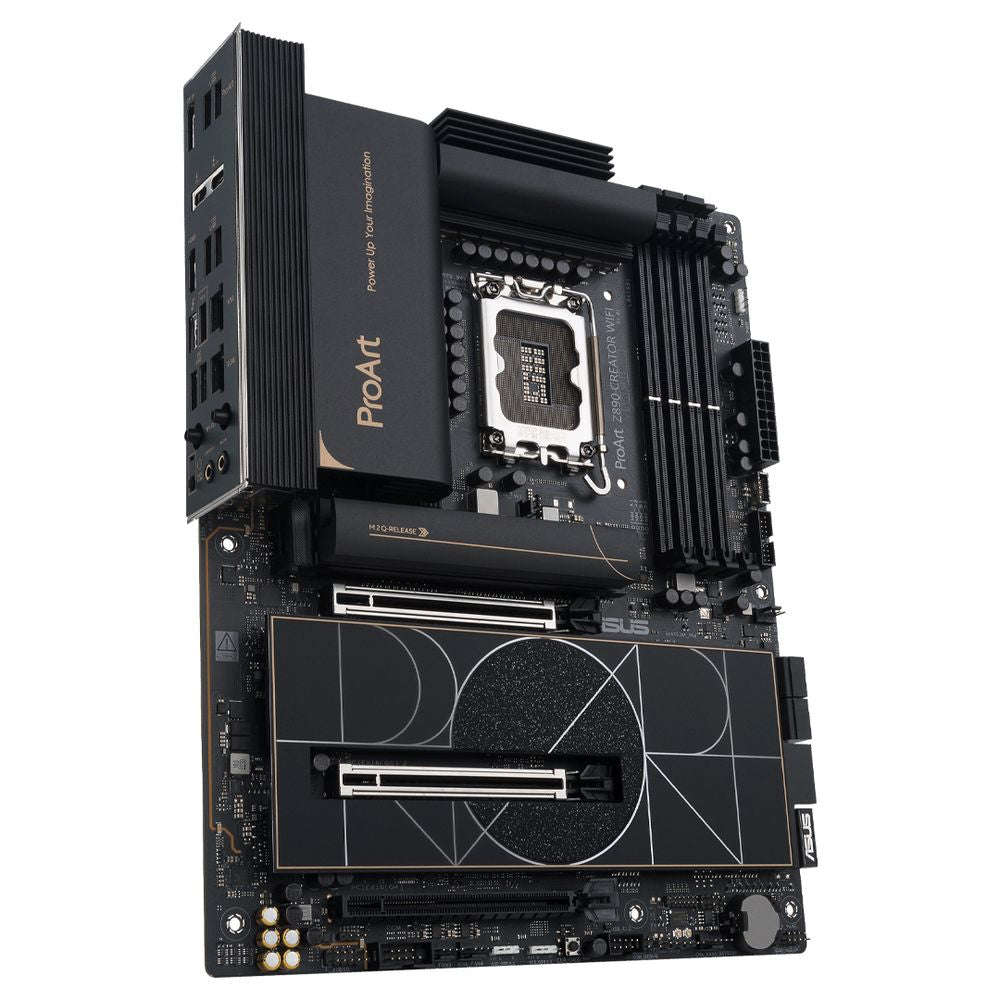

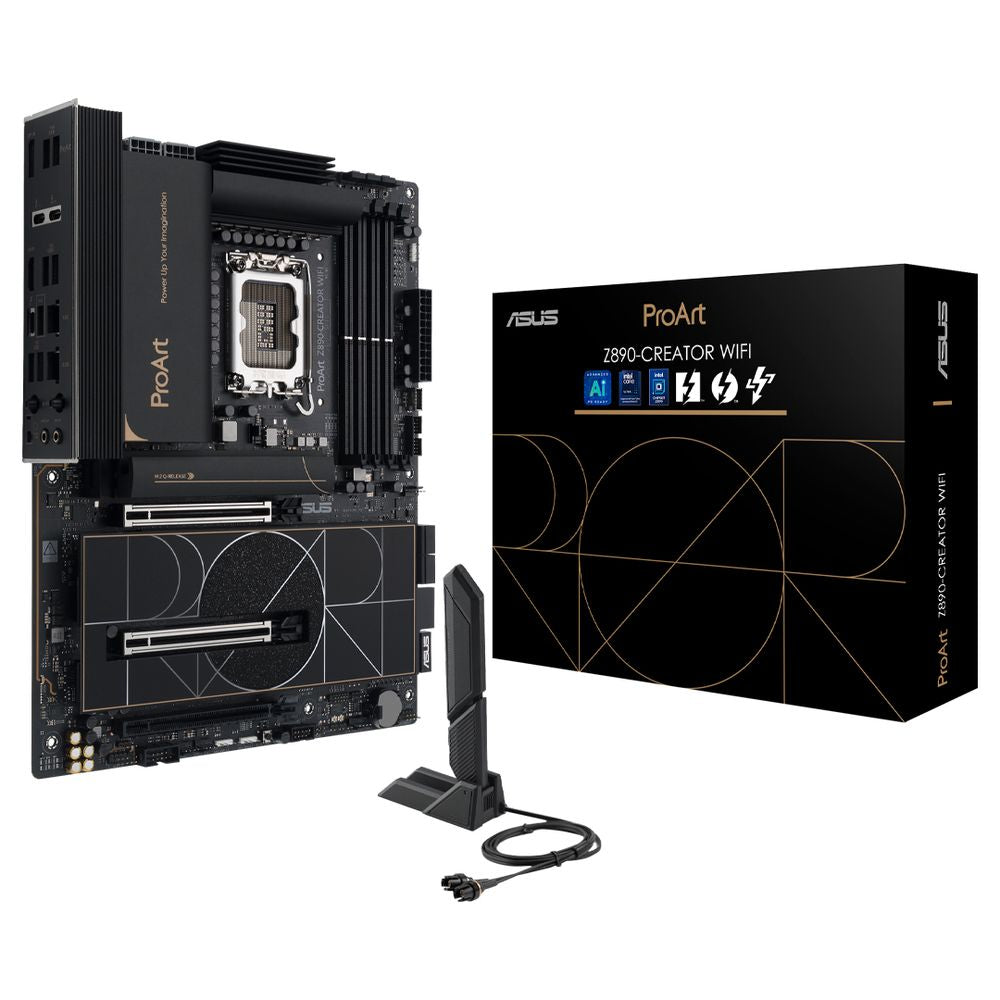

ASUS ProArt Z890 Creator Wifi DDR5 Intel Motherboard

ProArt Z890-Creator WiFi

ASUS ProArt Z890-CREATOR WIFI, Intel® Core™ Ultra Processor (Series 2) LGA1851 ATX motherboard, 16+1+2+2 power stages, PCIe® 5.0 with support for next-gen graphics cards, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G LAN, WiFi 7, five M.2 slots.

• Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA1851 socket:  Ready for Intel® Core™ Ultra 9, 7, and 5 desktop processors
• Robust performance: 16+1+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
• Future-proofed connectivity: Two Thunderbolt™ 5 ports and one Thunderbolt™ 4 port, 10G and 2.5G Ethernet ports, WiFi 7, two PCIe® 5.0 slots with support for next-gen graphics cards, and one PCIe 5.0 M.2 slot, four PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
• Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Networking II, AI Advisor and NPU boost
• DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack™, Q-Connector
• ProArt gives you more: ProArt Creator Hub with the Colour Management feature works in conjunction with Pantone’s proprietary utilities for one-stop system control and creation-related settings
• Advanced security:  ASUS Control Centre Express offers USB port management, software blacklisting and Regedit on/off controls

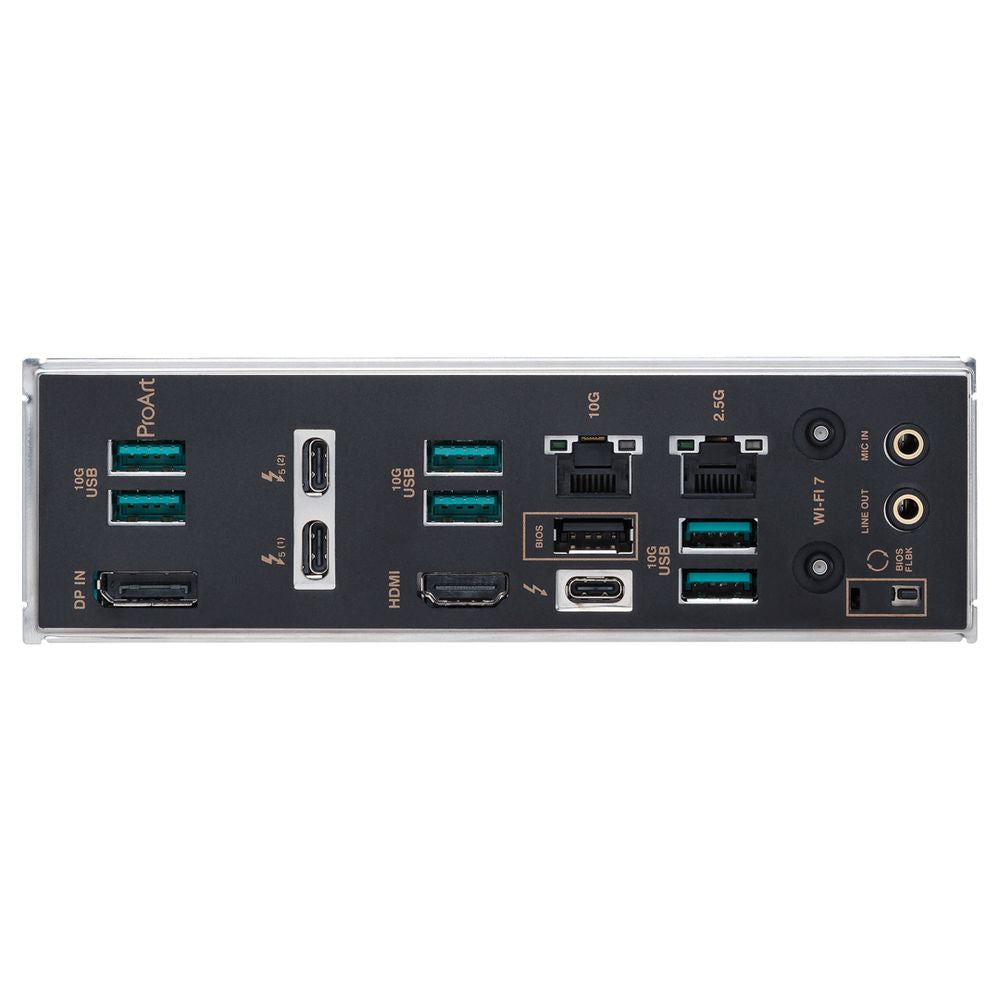

Thunderbolt™ Connectivity

Get immersed in your creations with two Thunderbolt™ 5 ports and one Thunderbolt™ 4 port for connecting to all your compatible content-creation gadgets, enjoying up to 120 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K colour-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port*.

*DP In cable not included.

• Up to 120 Gbps - Bi-directional bandwidth
• DisplayPort 2.1 - Supports one 8K or dual 4K displays
• Daisy-Chaining - For up to five devices

Ultrafast Networking

10G and 2.5G Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5G internet streaming or uploading and 10G for local network-attached storage (NAS), allowing for improved data organisation and security.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels on the 6 GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Specifications vary by model.

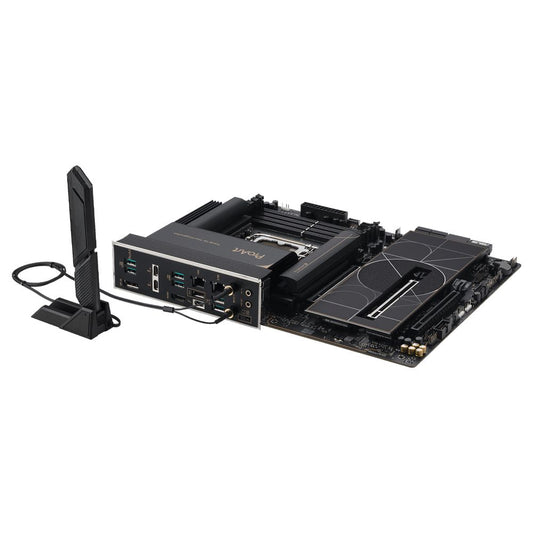

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Wireless Signal Reception Improvement
Versus previous-generation antenna

Disclaimer: The availability of WiFi 7 160 GHz and 320 GHz varies according to regional regulations.

PCIe 5.0 Support

The ProArt Z890-CREATOR WIFI offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Five Onboard M.2 Slots

ProArt Z890-CREATOR WIFI features one PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

*Actual transmission speed will be lower than theoretical maximum speed.

PCIe 5.0 Expansion Slots

Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

Robust Power Design

Designed to meet the needs of high-core-count CPUs, the ProArt Z890-CREATOR WIFI features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).

Intelligent AI Solutions

AI Overclocking

Maximised CPU performance and predictions for ideal CPU and cooling settings push your system to its limits.

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI Cooling II

Optimise thermals and reduce noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI Networking II

Optimise network performance, helping to ensure seamless connectivity and maximised WiFi 7 speeds.

Traffic Monitor

Armoury Crate’s Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the Channel Switch button (The Channel Switch function requires pairing with an ASUS router. If not paired with an ASUS router, the channel change process can be performed in the “Router IP" section of the Traffic Monitor.)

Fast Check

Armoury Crate’s Fast Check empowers users to rapidly detect WiFi signal strength.

Direction Finder

Armoury Crate’s Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.

*The Direction Finder is only compatible with connections in the 5 GHz and 6 GHz bands

Creation First

Creation First is a network-optimisation application, integrated into ProArt Creator Hub, offering five network modes to optimise bandwidth efficiency for different tasks.

AI Advisor

Easily explore the functionality and advanced features of ASUS motherboards with ASUS AI Advisor.

ASUS AI Advisor is an ASUS technical expert that is always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and AI Cooling II. For seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

Performance Boost

NPU Boost

The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24% (Results were with an Intel Arrow Lake QS Q2HA Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G). Individual results may vary)

Memory

The ProArt Z890-CREATOR WIFI enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.

DIMM Fit

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyses individual memory modules to optimise performance and pinpoint potential issues. This offers peak efficiency, compatibility and system stability.

Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay or a content creator prioritising rock-solid stability, DIMM Fit provides optimisations tailored to your needs and your hardware configuration.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimises the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.(Results may vary. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.)

PCIe® Slot Q-Release Slim

With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

M.2 Q-Release

The new M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

New M.2 Q-Latch

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Q-Antenna

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

The Power of Minimalist Design

A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

Customise Your Personal Settings

ProArt Creator Hub is your personal portal to monitor your PC status, personalise settings or optimise your workflow. It features an intuitive overview dashboard, with quickly switchable fan profiles and performance modes.

Colour Management

One of the most important things for creators is colour. The top right corner allows easy access to the colour management feature. This includes the Screen Colour Picker and Image Colour Extractor that make it simple to get a detailed colour analysis and colour information, and you can use the colour palette to build your personal colour preferences. You will also find colour trends and colour palettes created by the professionals at the ASUS Design Centre.

Work Smart

To streamline your workflow, you can select up to 8 apps to be launched at the same time with a single desktop shortcut.

Security Control and Remote Management

Advanced security management functions from ASUS Control Centre Express protect the PCs and confidential data in your creative studio.

USB Port Management

Enable or disable the USB port, or set it to Read Only to prevent data leaks.

Software Blacklist

For added security, a software blacklist is available to help prevent the use of high-risk applications.

Registry Editor On/Off

Remotely disable the Registry Editor on client devices to prevent unauthorised changes to system configurations.

Upgraded User Experience

BIOS Q-Dashboard and ASUS DriverHub make it easy to set up and maintain your PC, while ASUS GlideX delivers a variety of display and control options.

Q-Dashboard

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

ASUS DriverHub

ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.

ASUS GlideX

A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.
