Description

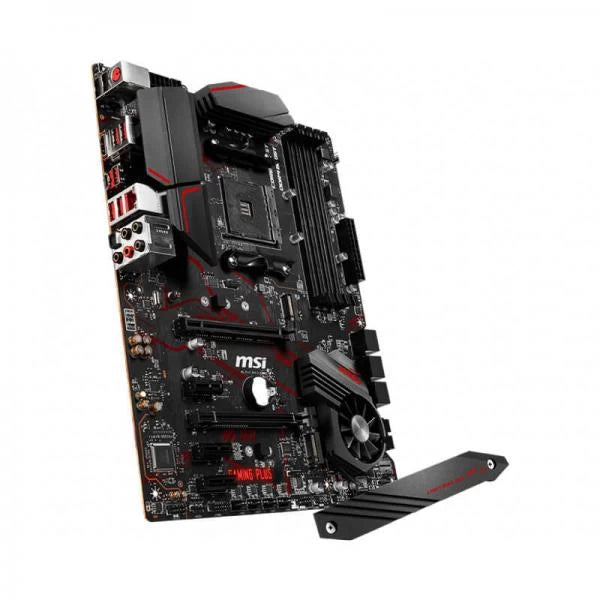

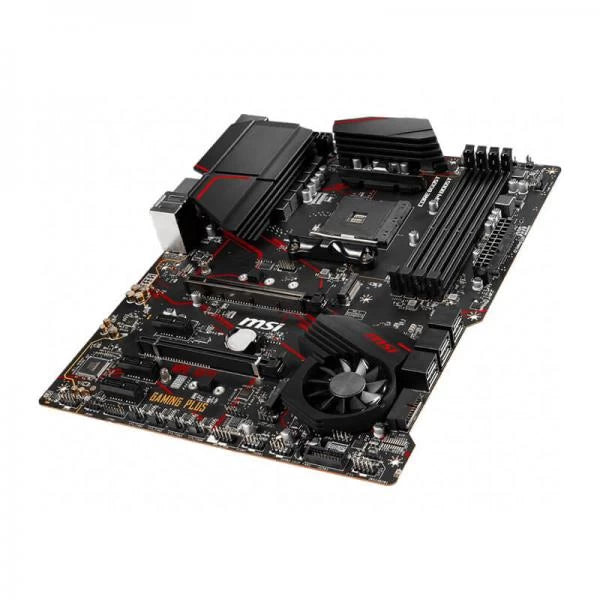

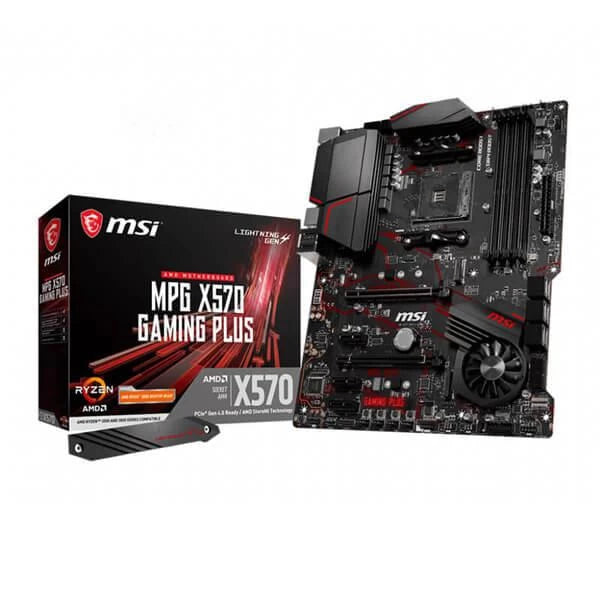

MSI MPG X570 Gaming Plus Motherboard
Features:
MSI MPG X570 Gaming Plus Motherboard is an ATX motherboard equipped with an extended heatsink design. With the support for 2nd gen and 3rd gen AMD Ryzen processors and AM4 APU, the MSI MPG X570 Gaming Plus Motherboard also comes with the newer and faster PCI-E gen 4.0 support for the newer graphics cards and M.2 drives. The blazing-fast performance of a PCI-E gen 4.0 devices enhances the overall performance in gaming, rendering, compressing, and a few other workloads. The Frozr heat sink design removes heat generated from the motherboard making it an ideal choice for gamers and enthusiasts. The server-grade PCB of the MSI MPG X570 Gaming Plus Motherboard provides higher performance with long-lasting stability.
The PCI-e Steel Armour protects the PCI-e slot from breaking or getting damaged with the use of high performance and powerful graphics cards. The isolated DDR circuit provides excellent digital signal transfers for the best gaming performance and overclocking supports. High-performance MSI motherboards are loaded with advanced technologies and features for gamers and enthusiasts alike. The MSI motherboards have enhanced audio and advanced LAN capabilities that turn any gaming experience into an immersive one. MSI MPG X570 Gaming Plus Motherboard has an industrial design and the R&D team along with the engineering one uses high-quality components sourced, built with precision and rigorous testing for stability with performance and reliability under extreme pressures.
Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon Center
- Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 socket
- Supports DDR4 Memory
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory, StoreMI, AMD Turbo USB 3.2 GEN2
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
- Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8 4 pin CPU power connector, Game Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
Specifications:
| PROCESSOR | Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4 |
| CHIPSET | AMD® X570 Chipset |
| MEMORY |
4x DDR4 memory slots, support up to 128GB 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer msi official website for more information on compatible memory. |
| EXPANSION SLOTS |
1x PCIe 4.0/3.0 x16 slot (PCI_E1)3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) 3x PCIe 3.0 x1 slots PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. The speeds may vary for different devices |
| ONBOARD GRAPHICS |
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors Maximum shared memory of 2048 MB |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® X570 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot(from AMD® Processor)- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)- Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD® X570 Chipset)- Supports PCIe 3.0 x4 and SATA 6Gb/s- Supports 2242/ 2260/ 2280 storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD® X570 Chipset 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® Processor 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN | 1x Realtek® 8111H Gigabit LAN Controller |
| INTERNAL CONNECTORS |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Serial port connector 1x Clear CMOS jumper 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LEDs |

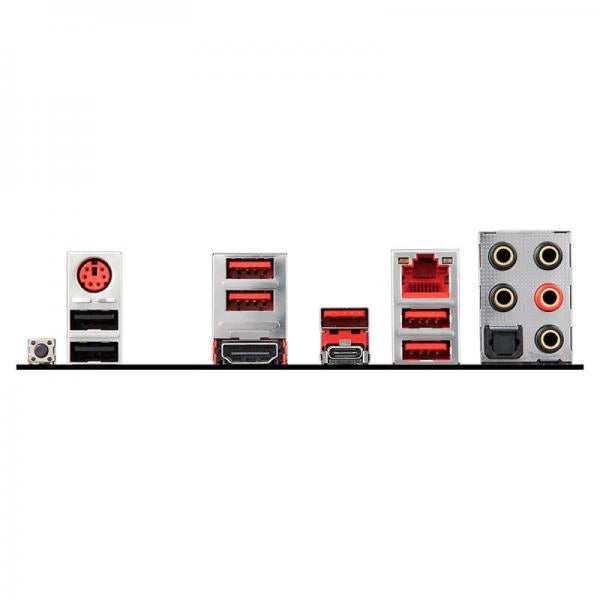

| BACK PANEL PORTS |
Keyboard / Mouse USB 3.2 Gen1 Type-A LAN Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen2 Type-A C USB 3.2 Gen1 Type-A Optical S/PDIF out |
| DIMENSIONS |
12 in. x 9.6 in. (30.4 cm x 24.3 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
