Description

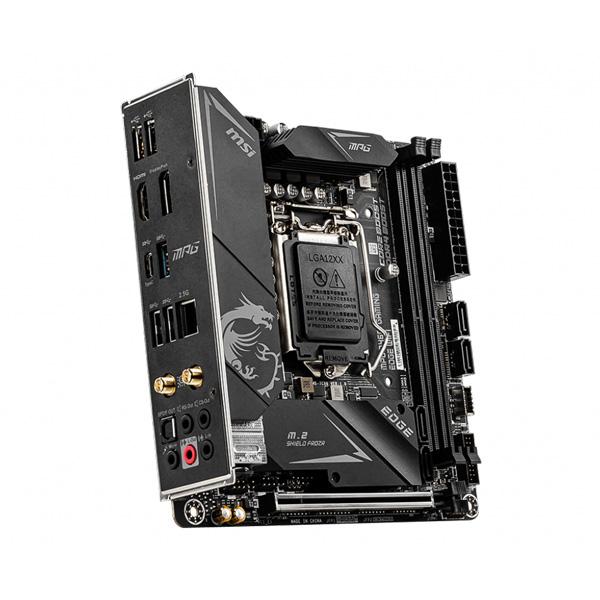

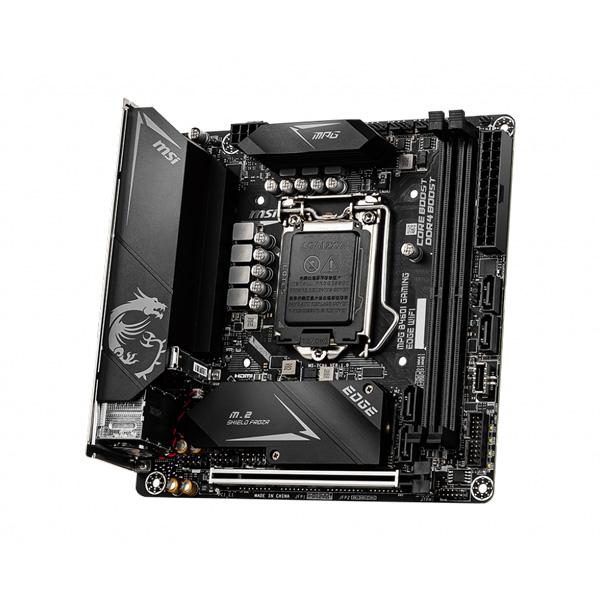

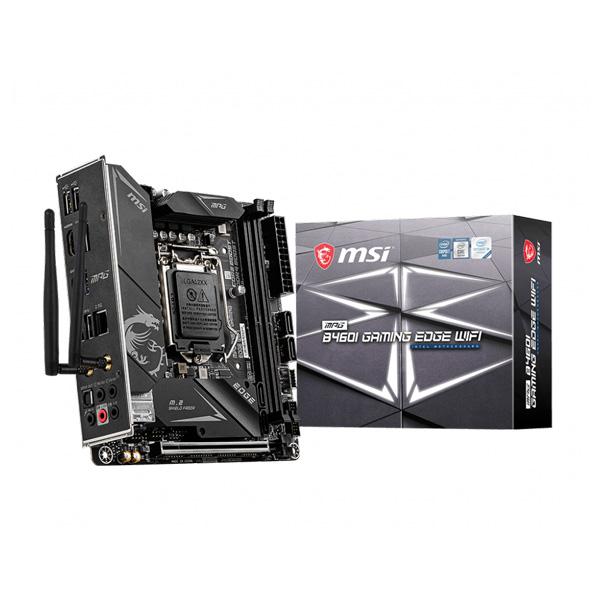

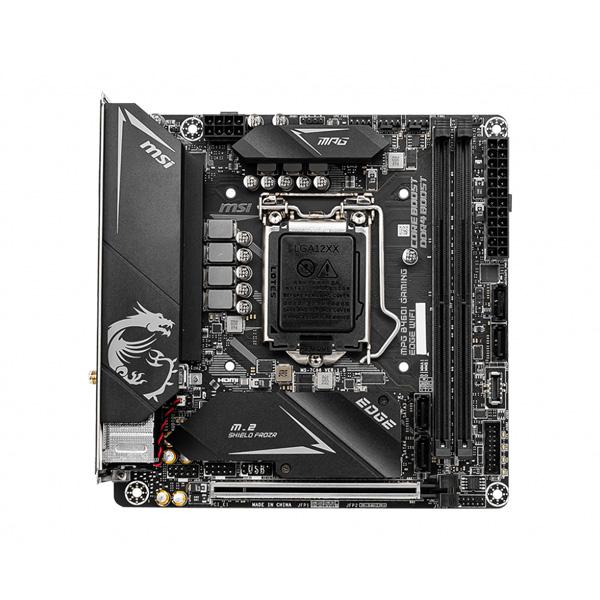

Msi MPG B460I Gaming Edge WiFi Motherboard
Features:
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933 MHz(Max)
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- Enhanced Power Design: 6+1+1 Digital Power Design, Core Boost, DDR4 Boost
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Intel Turbo USB 3.2 Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Specifications:
CPU | Supports Intel® 10th Gen processors for LGA 1200 socket |
Chipset | Intel® B460 Chipset |
Memory |
2x DDR4 memory slots, support up to 64GB Intel® Core™ i7 / i9Supports up to DDR4 2933 MHzIntel® Core™ i5 and belowSupports up to DDR4 2666 MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
Expansion Slot | 1x PCIe 3.0 x16 slot (From CPU) |
Onboard Graphics |
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz |
Storage |
Intel® B460 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2280 storage devices Intel® 0ptane™ Memory Ready for M2_2 slot. |
RAID |
Intel® B460 Chipset Supports RAD 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
Intel® B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port is available through the internal USB 3.2 Gen 1 5Gbps Type-C connector) 5x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector |
Audio |
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
Wireless LAN & 8luetooth |
Intel® AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot Only support windows 10 64-bit |
Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 1x System panel connector 1x 4-pin RGB LED connector 1x 3-pin RAINB0W LED connector 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CM0S jumper 4x EZ Debug LED |

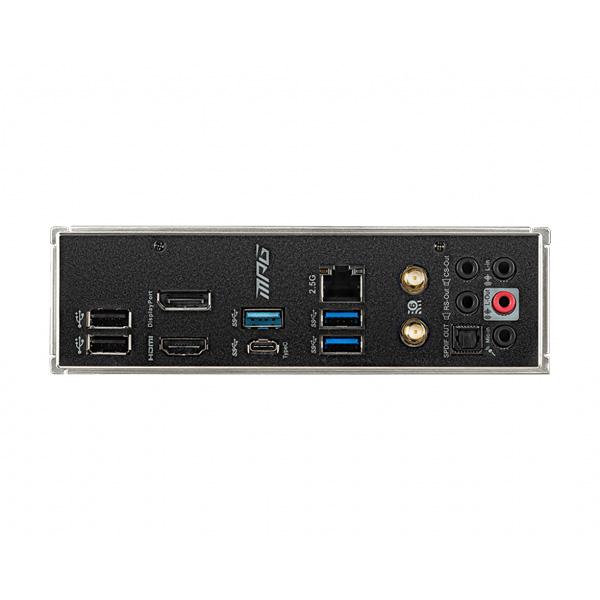

Back panel ports |
DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HD Audio Connectors USB 2.0 HDMI USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT |
I/O Controller | NUVOTON NCT6687 Controller Chip |
Dimensions |
Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
