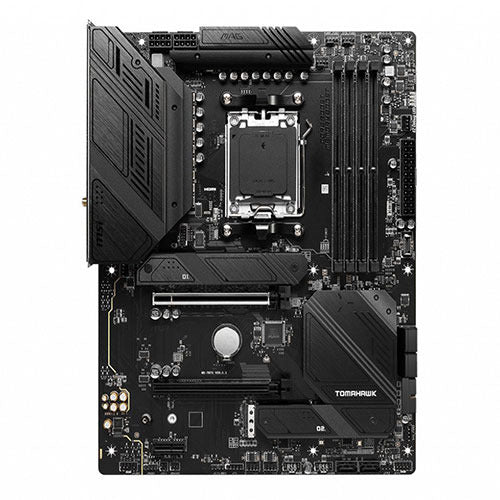

- MSI MAG B650 Tomahawk WiFi DDR5 Motherboard
Description

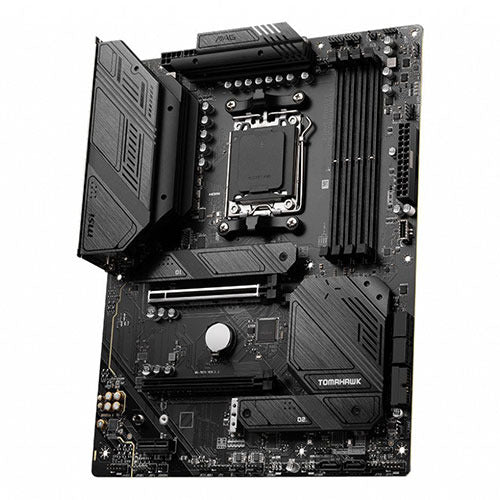

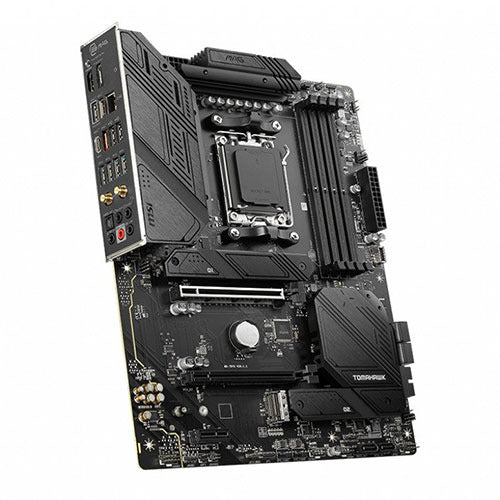

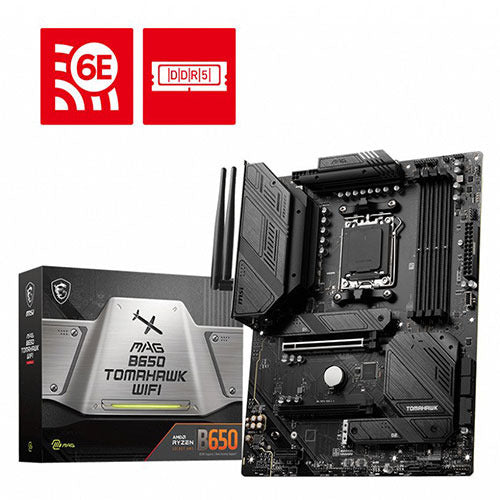

MSI MAG B650 Tomahawk WiFi AMD Motherboard
Features :
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications :
| Chipset | AMD B650 |
| CPU Support |
Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Memory |
4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz |
| Onboard Graphics |
1x HDMI™ 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* |
| Expansion Slot |
2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) |
| Storage |
3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
| Raid |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek® RTL8125B 2.5Gbps LAN |
| Wireless / Bluetooth |
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2** |
| Audio |
Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED Feature | 4x EZ Debug LED |

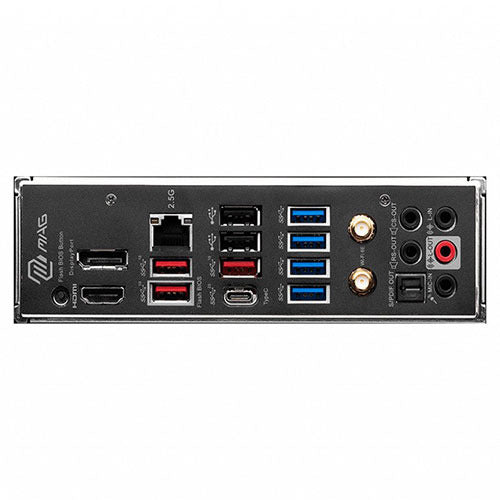

| Back Panel Ports |
DisplayPort 1.4 2.5G LAN Port USB 2.0 Port USB 3.2 Gen 1 5Gbps Type-A Wi-Fi / Bluetooth Antenna HD Audio Connectors Flash BIOS Button HDMI™ 2.1 Port USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension |
ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
