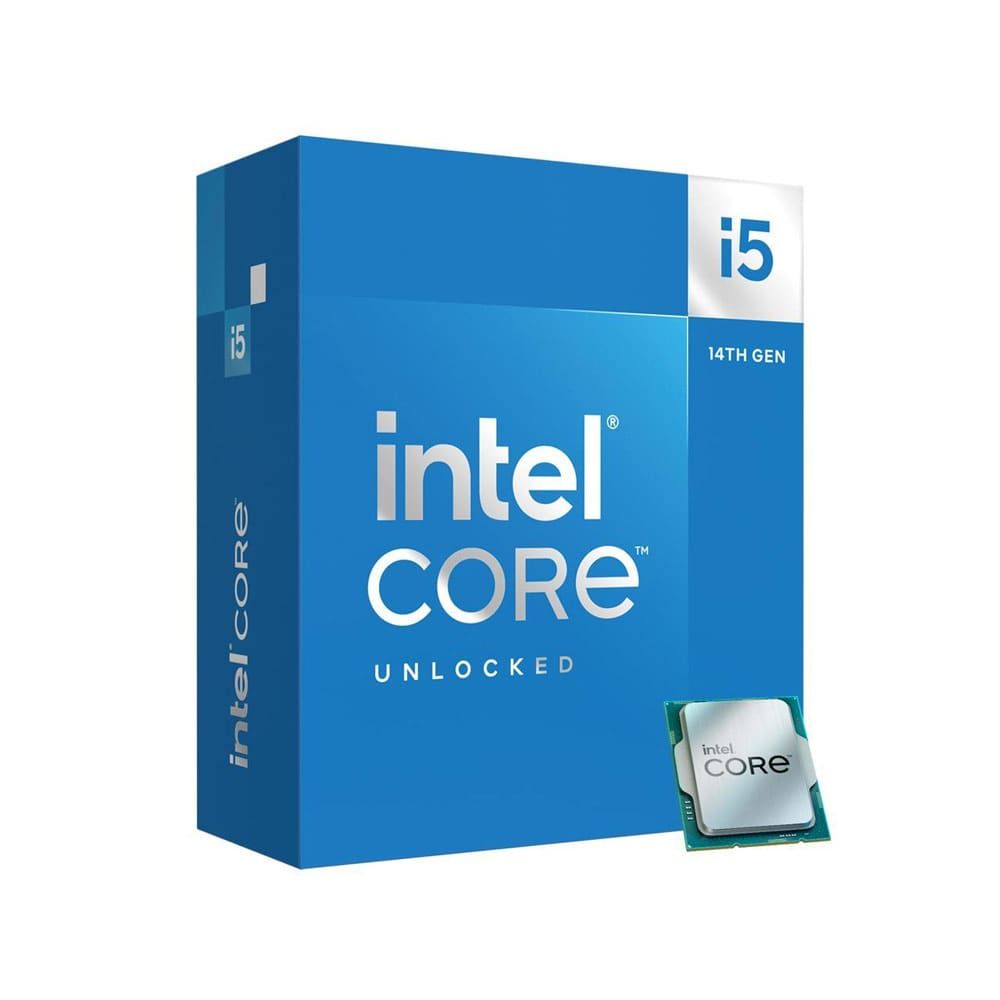

- Intel Core i5 14600K Processor
Description
Features:
- 14 cores (6 P-cores + 8 E-cores) and 20 threads. Integrated Intel UHD Graphics 770 included
- Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
- Up to 5.3 GHz unlocked. 24MB Cache
- Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
- Turbo Boost Max Technology 3.0 Frequency, and PCIe 5.0 & 4.0 support. Intel Optane Memory support. No thermal solution included
Specifications:
| Code Name | Products formerly Intel Core i5 14600K RAPTOR LAKE |
| Vertical Segment | Desktop |
| Processor Number | i5-14600K |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet, Workstation |
| CPU Specifications | |
| Total Cores | 14 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 8 |
| Total Threads | 20 |
| Max Turbo Frequency | 5.3 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Performance-core Base Frequency | 3.5 GHz |
| Efficient-core Base Frequency | 2.6 GHz |
| Cache | 24 MB Intel Smart Cache |
| Total L2 Cache | 20 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 181 W |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q4’23 |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported | Yes |
| GPU Specifications | |
| Processor Graphics | Intel UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
| Max Resolution (DP) | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel) | 5120 x 3200 @ 120Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.5 |
| OpenCL Support | 3 |
| Multi-Format Codec Engines | 2 |
| Intel Quick Sync Video | Yes |
| Intel Clear Video HD Technology | Yes |
| # of Displays Supported | 4 |
| Device ID | 0xA780 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020A |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel Gaussian & Neural Accelerator 3.0 | Yes |
| Intel Thread Director | Yes |
| Intel Deep Learning Boost (Intel DL Boost) on CPU | Yes |
| Intel Speed Shift Technology | Yes |
| Intel Turbo Boost Technology 2.0 | Yes |
| Intel Hyper-Threading Technology | Yes |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel Standard Manageability (ISM) | Yes |
| Intel Control-Flow Enforcement Technology | Yes |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel OS Guard | Yes |
| Execute Disable Bit | Yes |
| Intel Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
