- Intel Core i5 13400 Processor
Description

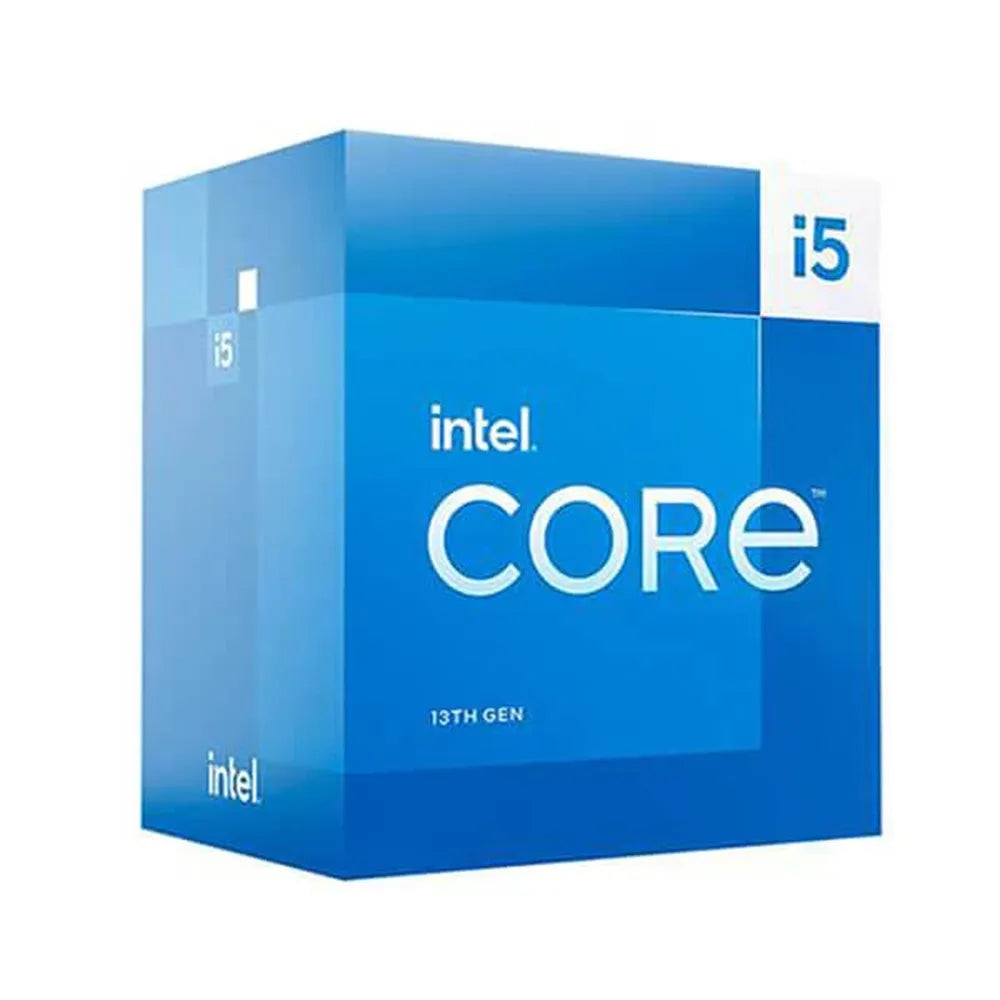

Intel Core i5-13400 13th Gen Desktop Processor
Features:
- Intel Core i5 13400 13th Gen Generation Desktop PC Processor Box CPU 20 MB Cache 10 Cores (6 Performance Cores and 4 Efficient Cores) 16 Threads. This is the best and latest processor in i5 category and does not require a discrete graphics card for display output. It is supplied with a Fan unit for Cooling. You can play AAA Titles such as GTA 5, Call of duty, and many more without GPU at low settings
- Intel Core i5 13400 supports latest LGA1700 Socket. Some of the supported Motherboards are B760, H770, Z790, Q670, W680, H610, H670, B660, Z690
- Intel Core i5 13400 uses base power of 65W and Maximum Turbo Power of 154W. This Processor can handle any task, Gaming, Editing, content creation, multiple displays, etc, and can be used for building a high-end PC.
- Intel Core i5 13400 Comes with 3 Years of warranty directly from Intel Brand.
- DDR5 RAM up to 4800 Mhz is supported according to specific motherboard compatibility. Windows 11 runs very smoothly with this processor. PCI-E 5.0 PCI-E 4.0 Support.
Specifications:
| Essentials | |
| Product Collection | 13th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-13400 |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 10 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 4 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.60 GHz |
| Performance-core Max Turbo Frequency | 4.60 GHz |
| Efficient-core Max Turbo Frequency | 3.30 GHz |
| Performance-core Base Frequency | 2.50 GHz |
| Efficient-core Base Frequency | 1.80 GHz |
| Cache | 20 MB Intel® Smart Cache |
| Total L2 Cache | 9.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 154 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types |
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 730 |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Base Frequency | 300 MHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 24 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Multi-Format Codec Engines | 1 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4682/0xA782 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
