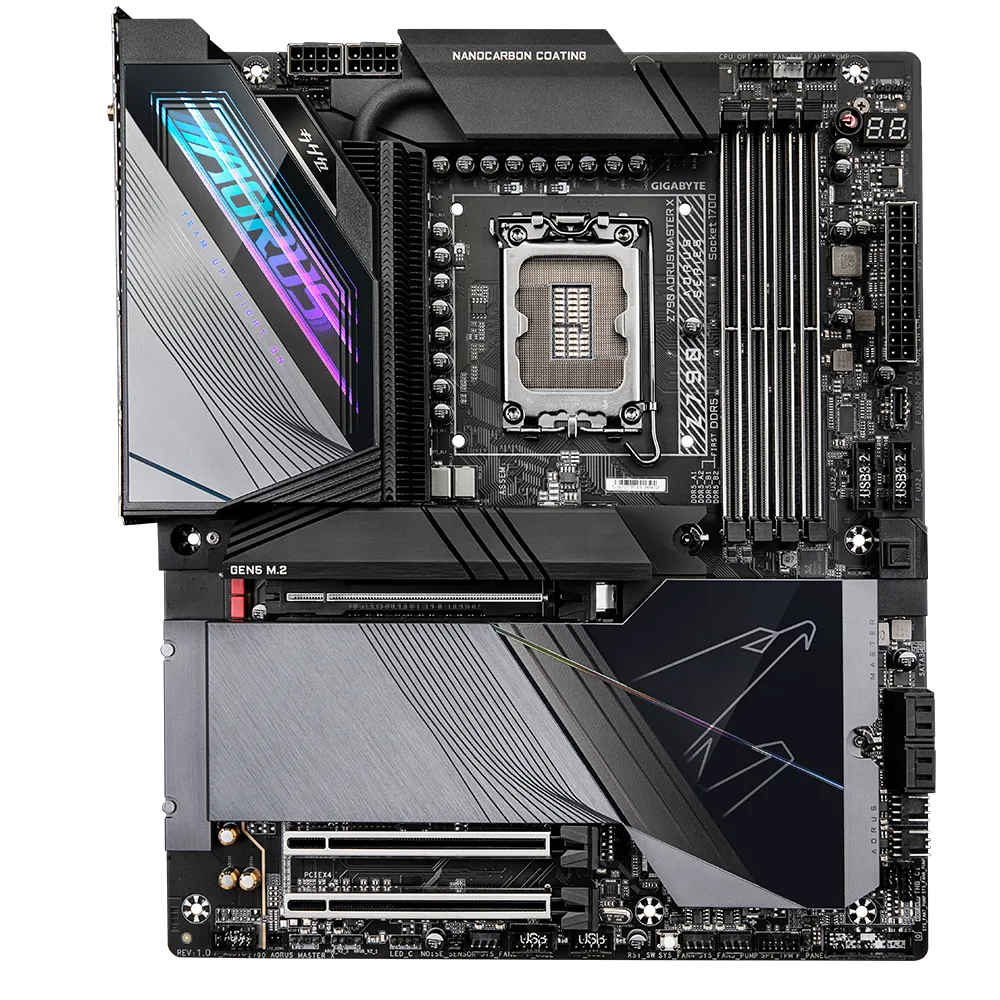

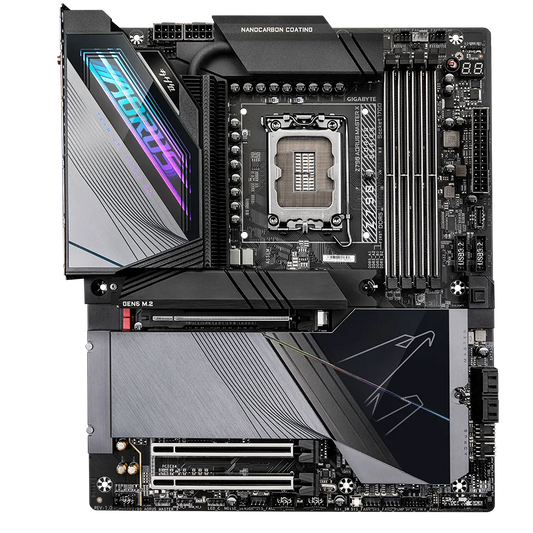

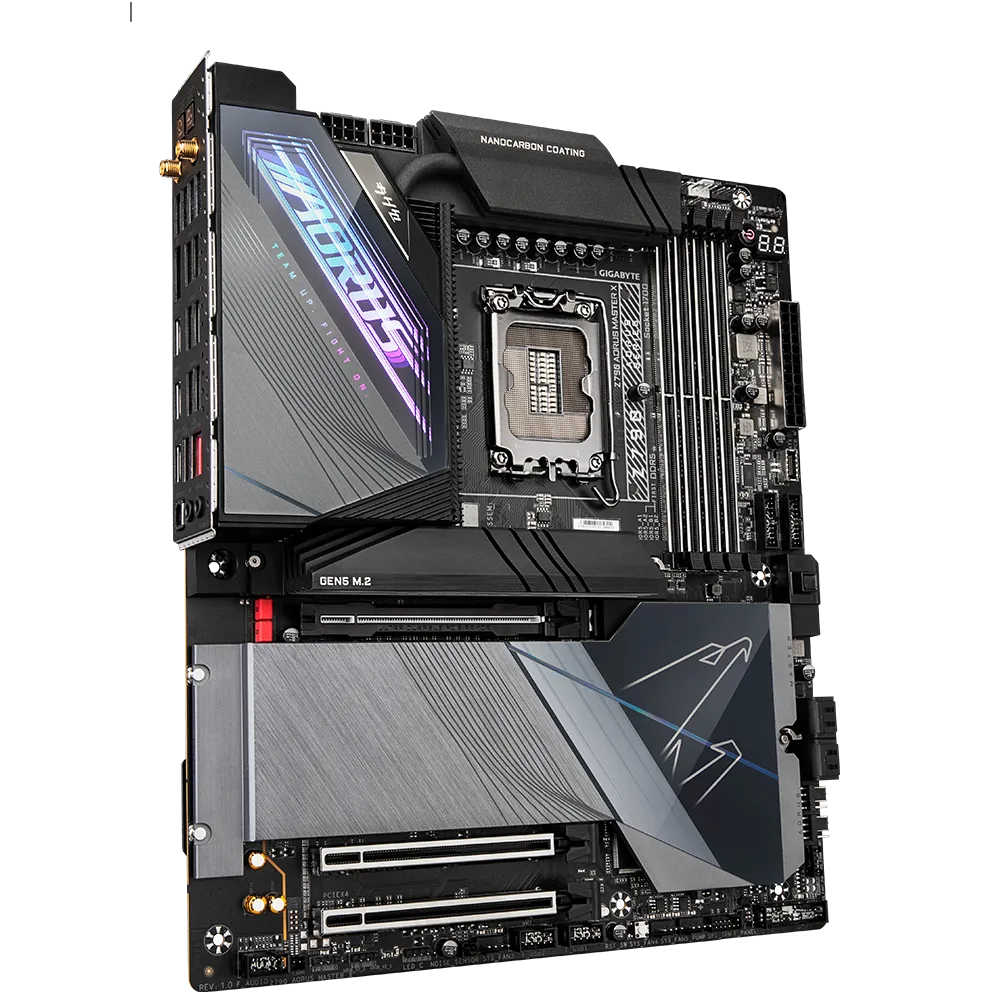

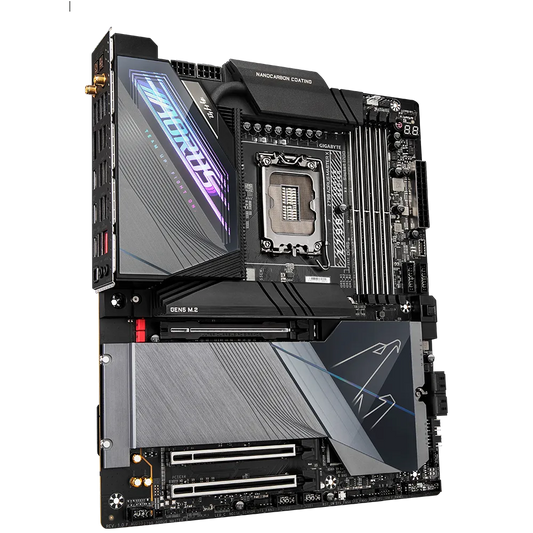

Gigabyte Z790 AORUS MASTER X Motherboard
Features
- Supports Intel® Core™ 14th and 13th processors
- Digital direct 20+1+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：PCIe 5.0 x16 slot & M.2 slots with quick release design
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Fins-Array & M.2 Thermal Guard XL
- Fast Networking：10GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity：DP, Front USB-C® 10Gb/s, Front & Dual Rear USB-C® 20Gb/s
- DTS:X® Ultra Audio：ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
Specifications
| CPU |
|
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
|
|
L3 cache varies with CPU
|
|
* Please refer to "CPU Support List" for more information.
|
| Chipset |
|
Intel® Z790 Express Chipset
|
| Memory |
|
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
|
|
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
|
Support for Extreme Memory Profile (XMP) memory modules
|
|
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
|
|
Onboard Graphics
|
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
|
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
|
|
* Support for DisplayPort 1.2 version and HDCP 2.3
|
| Audio |
|
Realtek® ALC1220-VB CODEC
|
|
* The front panel line out jack supports DSD audio.
|
|
ESS ES9118 DAC chip
|
|
Support for DTS:X® Ultra
|
|
High Definition Audio
|
|
2/4/5.1-channel
|
|
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
|
|
Support for S/PDIF Out
|
| LAN |
|
Marvell® AQtion AQC113C 10GbE LAN chip
|
|
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
|
|
Wireless Communication module
|
|
Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0)
|
|
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
|
|
- BLUETOOTH 5.3
|
|
- Support for 11be 320MHz wireless standard
|
|
MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1)
|
|
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
|
|
- BLUETOOTH 5.3
|
|
- Support for 11be 320MHz wireless standard
|
|
Intel® Wi-Fi 7 BE200 (PCB rev. 1.2)
|
|
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
|
|
- BLUETOOTH 5.3
|
|
- Support for 11be 320MHz wireless standard
|
|
(Actual data rate may vary depending on environment and equipment.)
|
|
Expansion Slots
|
| CPU: |
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
|
|
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
|
|
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
|
| Chipset: |
|
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
|
|
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
|
|
Storage Interface
|
| CPU: |
|
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
|
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
|
| Chipset: |
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
|
|
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
|
|
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
|
|
- 4 x SATA 6Gb/s connectors
|
|
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
|
|
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
|
| USB |
| Chipset: |
|
- 3 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header)
|
|
Chipset+2 USB 3.2 Gen 2 Hubs:
|
|
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
|
|
- 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
|
|
Chipset+2 USB 3.2 Gen 1 Hubs:
|
|
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
|
|
Chipset+USB 2.0 Hub:
|
|
- 4 x USB 2.0/1.1 ports available through the internal USB headers
|
|
Internal I/O Connectors
|
|
1 x 24-pin ATX main power connector
|
|
2 x 8-pin ATX 12V power connectors
|
|
1 x CPU fan header
|
|
1 x CPU fan/water cooling pump header
|
|
4 x system fan headers
|
|
4 x system fan/water cooling pump headers
|
|
3 x addressable RGB Gen2 LED strip headers
|
|
1 x RGB LED strip header
|
|
5 x M.2 Socket 3 connectors
|
|
4 x SATA 6Gb/s connectors
|
|
1 x front panel header
|
|
1 x front panel audio header
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
|
|
2 x USB 3.2 Gen 1 headers
|
|
2 x USB 2.0/1.1 headers
|
|
1 x noise detection header
|
|
2 x Thunderbolt™ add-in card connectors
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
|
|
1 x power button
|
|
1 x reset button
|
|
1 x reset jumper
|
|
1 x Clear CMOS jumper
|
|
2 x temperature sensor headers
|
|
Voltage Measurement Points
|
|

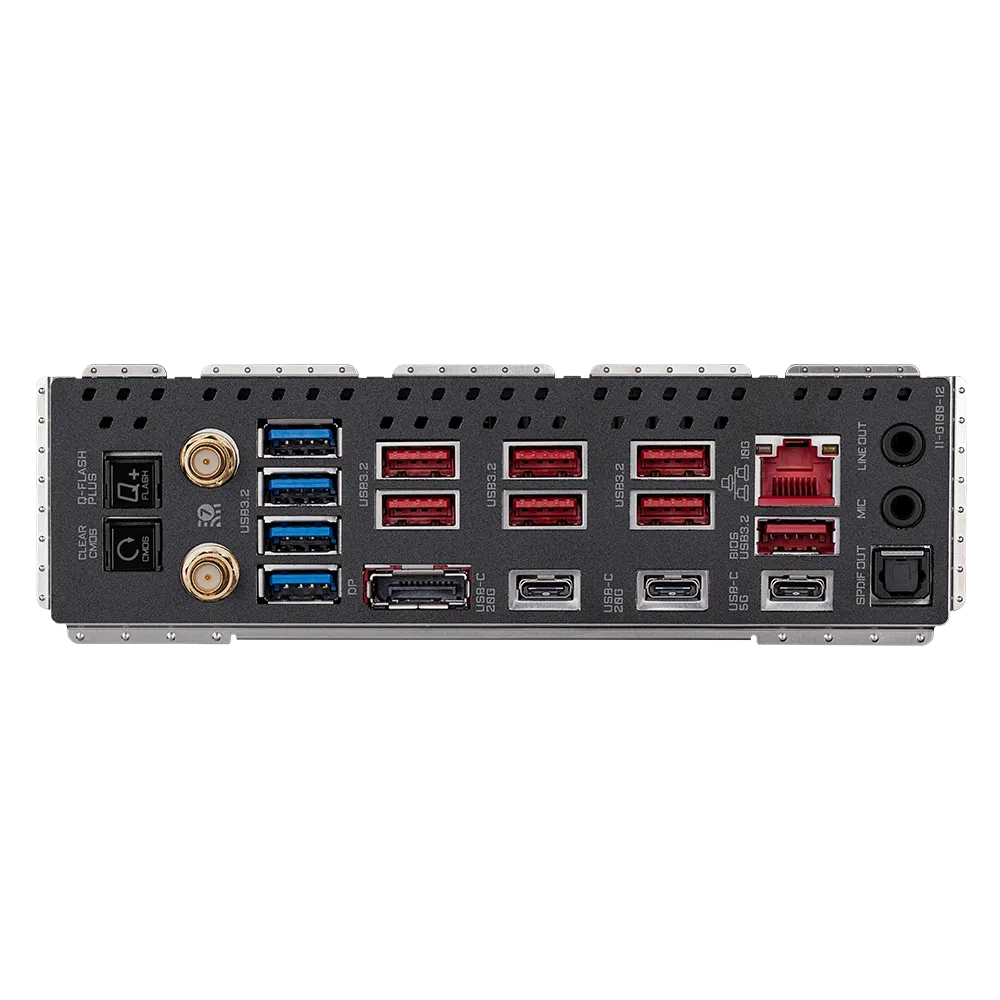

Back Panel Connectors
|
|
1 x Q-Flash Plus button
|
|
1 x Clear CMOS button
|
|
2 x SMA antenna connectors (2T2R)
|
|
1 x DisplayPort
|
|
1 x USB Type-C® port, with USB 3.2 Gen 1 support
|
|
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support
|
|
7 x USB 3.2 Gen 2 Type-A ports (red)
|
|
4 x USB 3.2 Gen 1 ports
|
|
1 x RJ-45 port
|
|
1 x optical S/PDIF Out connector
|
|
2 x audio jacks
|
|
I/O Controller
|
|
iTE® I/O Controller Chip
|
|
H/W Monitoring
|
|
Voltage detection
|
|
Temperature detection
|
|
Fan speed detection
|
|
Water cooling flow rate detection
|
|
Fan fail warning
|
|
Fan speed control
|
|
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
|
|
Noise detection
|
| BIOS |
|
1 x 256 Mbit flash
|
|
Use of licensed AMI UEFI BIOS
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
|
Unique Features
|
|
Support for GIGABYTE Control Center (GCC)
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
|
Support for Q-Flash
|
|
Support for Q-Flash Plus
|
|
Support for Smart Backup
|
|
Bundled Software
|
|
Norton® Internet Security (OEM version)
|
|
LAN bandwidth management software
|
|
Operating System
|
|
Support for Windows 11 64-bit
|
|
Form Factor
|
|
E-ATX Form Factor; 30.5cm x 26.0cm
|
