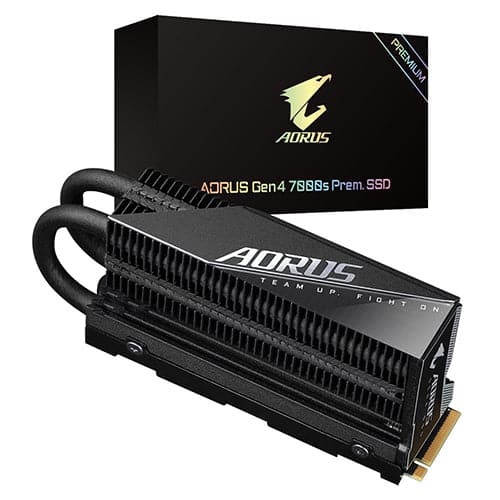

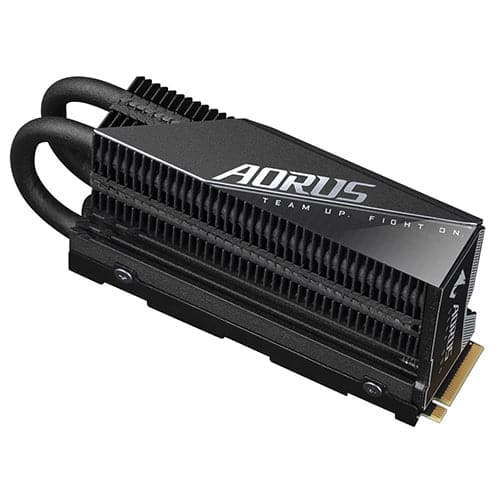

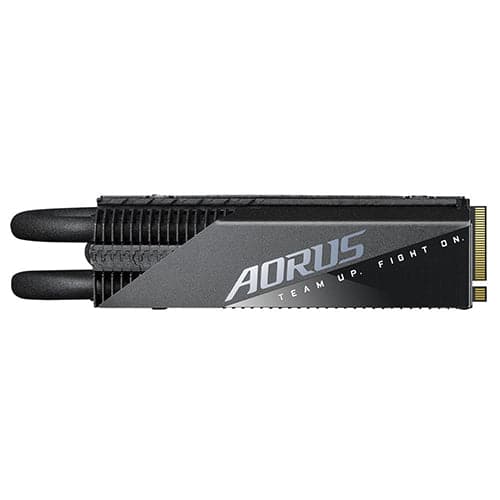

Gigabyte Aorus Gen4 7000s 1TB M.2 2280 NVMe 1.4 SSD

Gigabyte AORUS Gen4 7000s 1TB M.2 2280 NVMe 1.4 SSD

Features:

2nd Generation PCIe 4.0x4 Controller

The 2nd generation PCIe 4.0 controller PS5018-E18 deliver sequential read/write up to 7GB/s with 3D TLC NAND Flash. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 caching and meets NVMe 1.4.

Selected High Speed 3D TLC NAND Flash (1200MT/s)

The 3D TLC NAND Flash(96L) is operating at 1200MT/s, Which is 50 % more than the prevision version that leads to better performance.

Extreme Storage Performance

With 2nd generation PCIe 4.0 controller PS5018-E18, AORUS Gen4 7000s Prem. SSD delivers blazing speeds: up to 7,000 MB/s for sequential read, and up to 5,500MB/s sequential Write*. Sequential Read performance of PCIe 4.0 SSDs is up to 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.

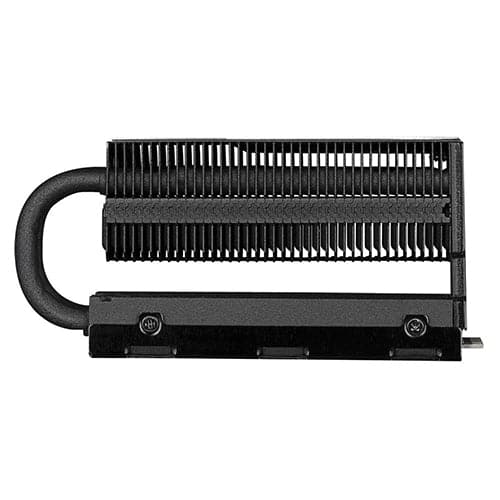

M.2 Thermal Guard XTREME with Nanocarbon Coating

M.2 Thermal Guard XTREME is made up of two heatpipes and stacked fins with advanced thermal technology Nanocarbon coating for maximum heat dissipation efficiency. Applied with dual side high conductivity thermal pad ensures the heat transferring to the stacked fins. The M.2 Thermal Guard XTREME is the best solution in passive airflow condition when your personal computer adopts CPU AIO water cooler.

Extreme Seq. Read Performance with No Throttling

Compared with regular plated heat spreader, the M.2 Thermal Guard XTREME improves thermal dissipation to keep the highest Seq. read performance with no throttling. AORUS 7000s Gen4 Prem. SSD comes with the best thermal solution in current market, there is no performance compromised, enjoy the smoother & upgraded storage performance any time

Why is keeping an SSDs at lower temperatures so important

Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With Heat Spreaders, the AORUS Gen4 7000s Prem. SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can running at extreme performance without throttling.

Technical Detail

Brand : Gigabyte
Modal : GP-AG70S1TB-P

Technical Spec

Interface : PCI-Express 4.0 x4, NVMe 1.4
Form Factor : M.2 2280
Total Capacity : 1000GB
NAND : 3D TLC NAND Flash
External DDR Cache : DDR4 1GB
Sequential Write speed : Up to 5500 MB/s
Random Read IOPS : up to 350k
Random Write IOPS : up to 700k
Dimension : 92 x 23.5 x 44.7 mm
Mean time between failure (MTBF) : 1.6 million hours
Power Consumption (Active) : Average: R : 7.6W, W : 8.4W
Power Consumption (Idle) : <30mW
Temperature (Operating) : 0°C to 70°C
Temperature (Storage) : -40°C to 85°C
Warranty : Limited 5-years
