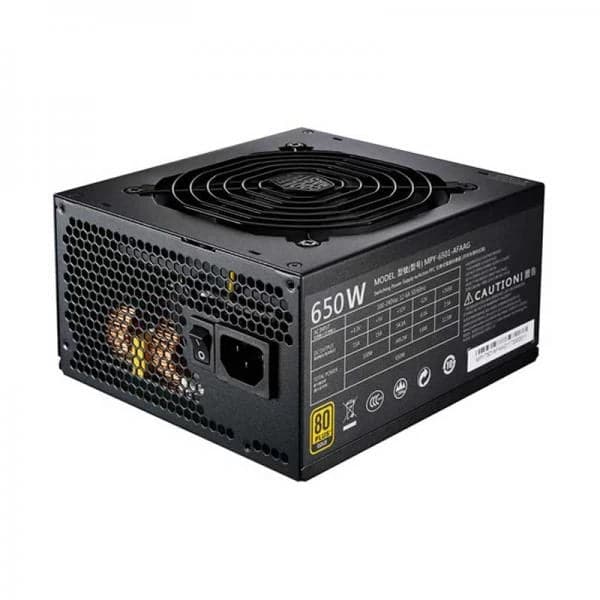

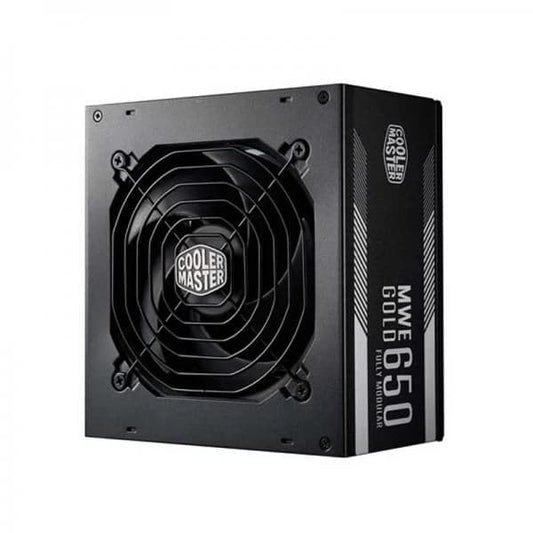

Cooler Master MWE 650 80+ Gold Fully Modular Power Supply (650 W)

Cooler Master MWE Gold 650W Fully Modular PSU (650 Watt)

Features :

Behold the 80 Plus Gold rated, fully modular MWE Gold. This power supply unit delivers consistent 90% efficiency, low temperatures, and quiet operation. High quality, heat resistant components have been used to achieve gold level performance at temperatures up to 45°C. The Silencio fan and exclusive LDB bearing provides nearly silent cooling at no loss to system performance and a longer lifespan. Flat cables improve airflow by reducing cable bulk and a single 12V line ensures all components are fed the same stable output regardless of which cable you use. Be bold, power with gold

1. 80 PLUS GOLD CERTIFIED: This certification guarantees a typical efficiency of 90% under normal operating conditions.

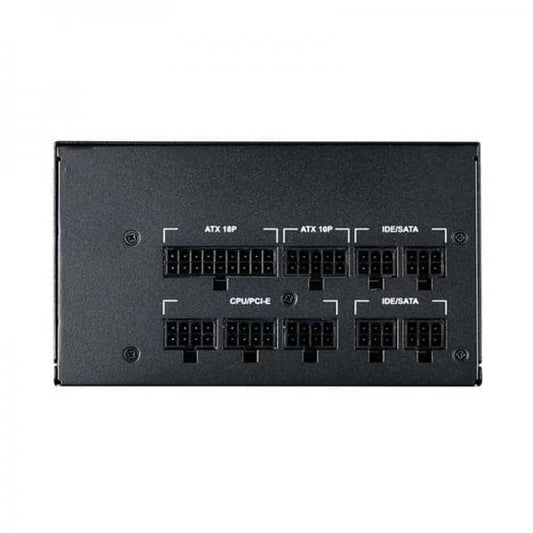

2. FULLY MODULAR CABLES: Fully customizable cabling reduces clutter, increases airflow, and improves overall thermal performance.
3. ADVANCED CIRCUITRY: The MWE Gold’s full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs.
4. 5 YEAR WARRANTY: This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.

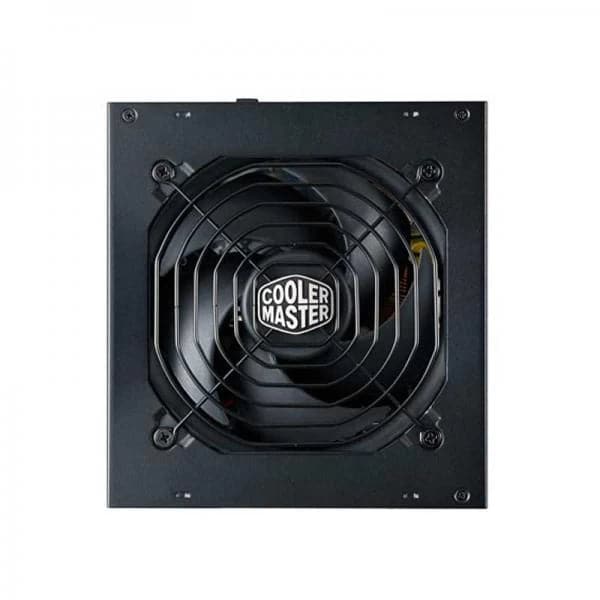

5. SEALED LDB FAN BEARING: The sealed LDB bearing has been combined with Silencio fan technology for quiet cooling with a longer lifespan.
6. PSU Calculator: Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.

PRODUCT SPECIFICATIONS

1. Product Name: MWE Gold 650 Full Modular
2. Product Number: MPY-6501-AFAAG
3. ATX Version: ATX 12V V2.31
4. PFC: Active PFC
5. Input Voltage: 100-240V
6. Input Current: 12-6A
7. Input Frequency: 50/60Hz
8. Dimensions (LxBxH): 160 x 150 x 86mm
9. Fan Size: 120mm
10. Fan Bearing: LDB
11. Powergood Signal: 100-500ms
12. Hold Up Time: >14 ms @ 100% load
13. Efficiency: 90% Typically
14. ErP 2013 Lot 6: Yes
15. MTBF: >100,000 Hours
16. Operating Temperature: 0-45°C
17. Protections: OVP / OPP / UVP / SCP / OTP
18. Regulatory: CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
19. Connectors: MB 24 Pin: 1, CPU 12V 4 4 Pin: 1, SATA: 8, Peripheral 4 Pin: 6, FDD Cable 4 Pin: 1, PCI-e 6 2 Pin: 4

Specifications :
