Description

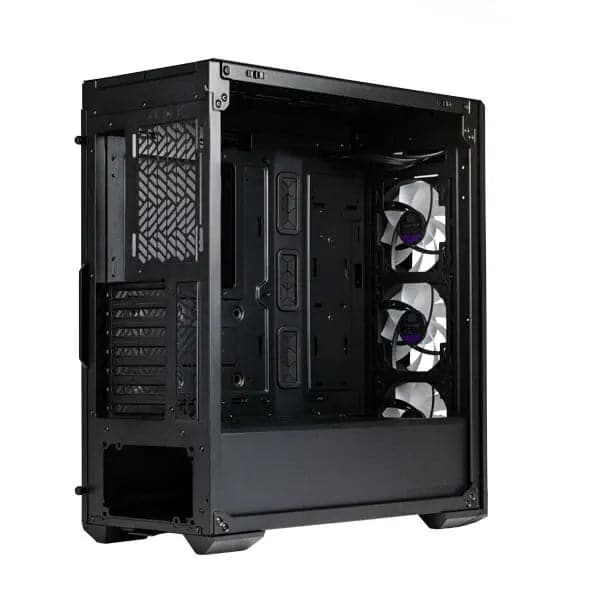

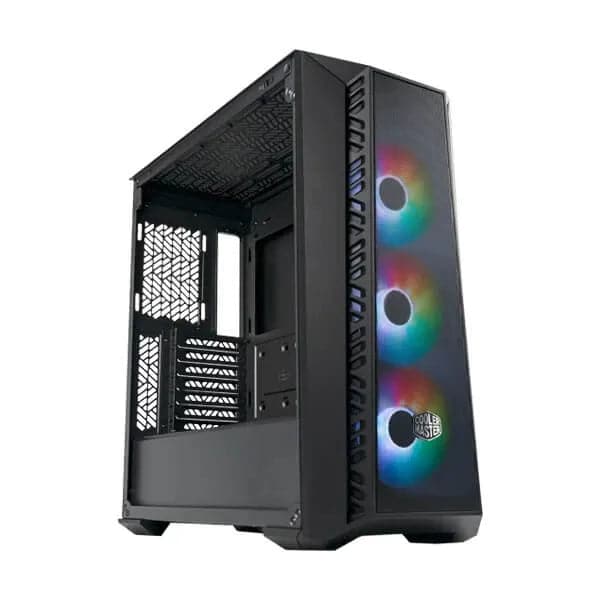

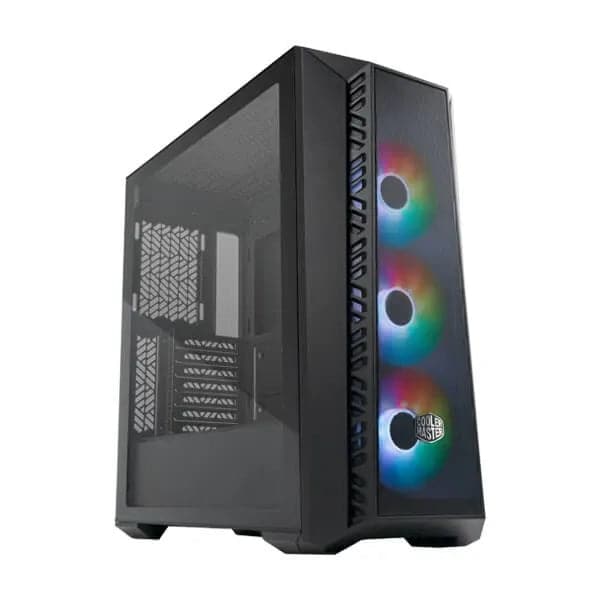

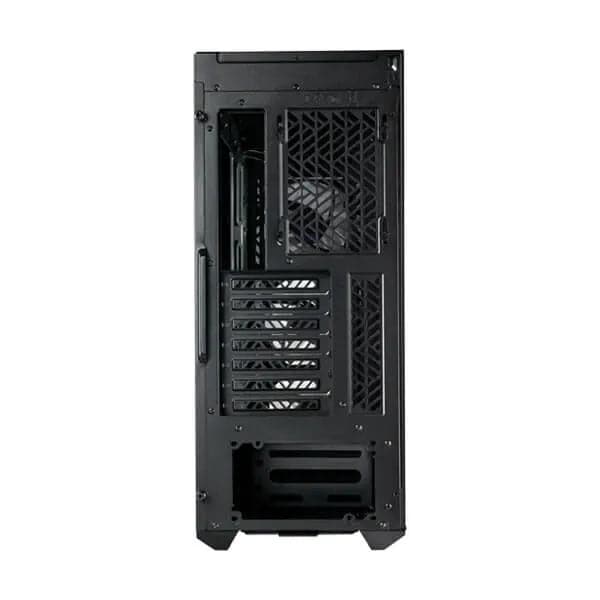

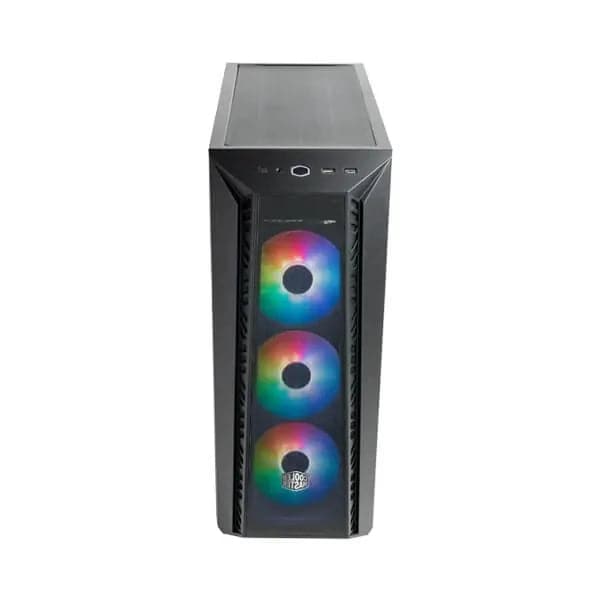

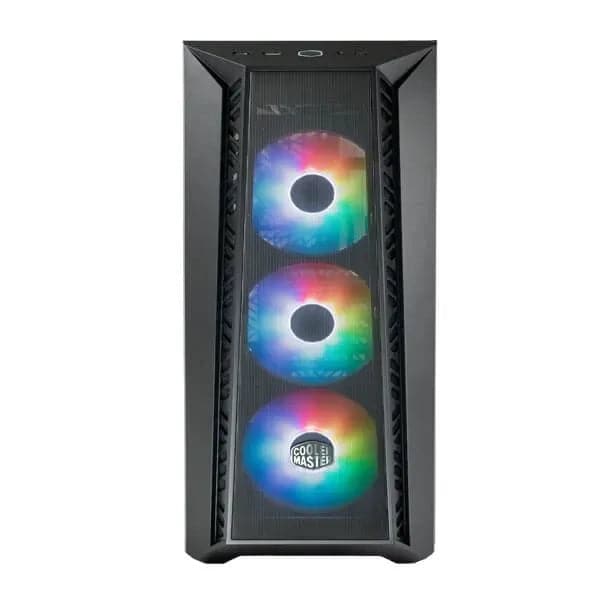

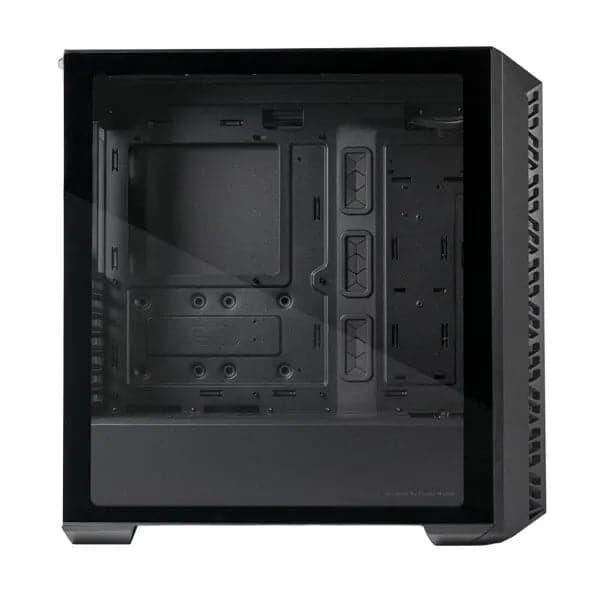

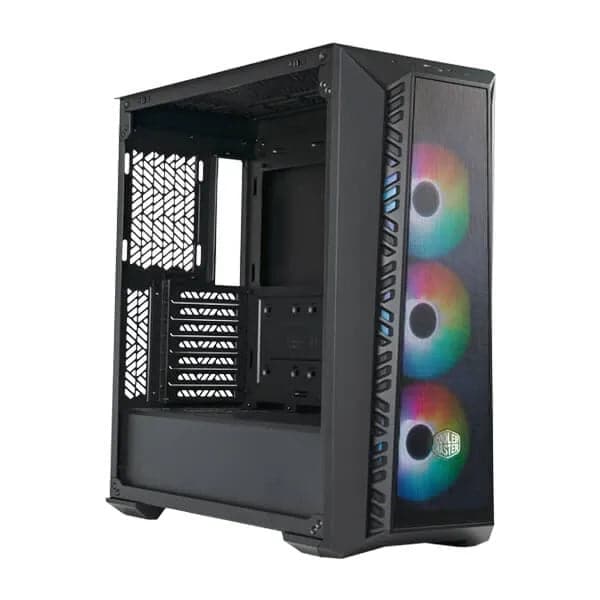

Cooler Master Masterbox 520 Mesh Mid Tower Cabinet (Black)
Features:
- With USB 3.2 Gen2 Type-C
- Three 120mm ARGB Fans Included management and allows users to tailor light effects to match the theme of the build.
- Removable Top Panel
- Screwless & Tool-Free TG Side Panel
- Versatile Cooling Options
- Removable HDD cage
- Upgraded Removable Dust Filter Bracket
Specifications:
| Product Name | MasterBox 520 |
| Product Number | MB520-KHNN-S00 |
| Exterior Color | Black |
|
Materials
|
Exterior Steel, ABS Plastic, Tempered Glass |
|
Left Side Panel Tempered Glass |
|
|
Dimensions (L x W x H)
|
incl. Protrusions 502 x 210 x 498mm |
|
Body Size 443 x 210 x 498mm |
|
| Volume | 50L |
| Motherboard Support |
Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12″ x 10.7″ motherboards, may impact cable management feature) |
| Expansion Slots | 7 |
|
Drive Bays
|
5.25“ ODD 0 |
|
2.5″/3.5” Combo 2 |
|
|
2.5” SSD 3 |
|
|
I/O Panel
|
USB Ports "1x USB 3.2 Gen1 Type-A 1x USB 3.2 Gen2 Type-C" |
|
Audio In / Out 1x 3.5mm Headset Jack (Audio + Mic) |
|
|
Other 1x Reset/ARGB Button |
|
| ARGB Control | ARGB/PWM Hub |
|
Pre-installed Fan(s)
|
Front 3x 120mm ARGB Fan |
|
Top N/A |
|
|
Rear 1x 120mm Non-LED Fan |
|
|
Fan Support
|
Front 3x 120mm / 2x 140mm |
|
Top 3x 120mm / 2x 140mm |
|
|
Rear 1x 120mm |
|
|
Radiator Support
|
Front 120/140/240/280/360mm |
|
Top "120/140/240/280/360mm (recommended maximum thickness – 55mm)" |
|
|
Rear 120mm |
|
|
Clearances
|
CPU Cooler 165mm |
|
Power Supply "200mm (recommended up to 170mm)" |
|
|
Graphics Card 410mm |
|
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom mount, ATX PS2 |
| Warranty | 2 Years |
